This is a drop in replacement for the M&K Sub Woofer in 4 Ohms
Qty. Available 27

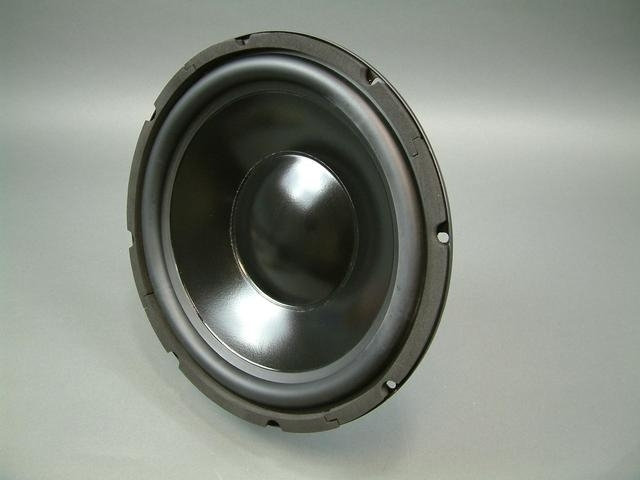

Mavin EM-TL3006Y-4 Woofer
This is a drop in replacement for any of the standard M&K Woofers used in their Sub Woofer Designs 4 Ohm version.
Mavin's Own 12" High Performance Driver
Rated to 250 Watts RMS with a Minimum SPL of 90 dB
It has a Practical Frequency Range from 25 Hz to 5,250 Hz
Rubber Surround and Heavy Magnet Structure High End Quality at a Mid Level Price.
Simply put, remove the screws from your M&K Sub, unhook a few wires, then just swap out the woofer doing the reverse to install the new driver.
5 minutes and you're done, better still your M&K Sub will sound like new again. At 15 pounds this driver is more efficient than the M&K's meaning that your sub may hit just a little bit harder.
- Stiff Pressed Paper Cone with Rubber Surround
- 250 Watts RMS Power Rating
- 8 ohm impedance
- A Practical Frequency Range from 30 Hz. to 3800 Hz.
- 2 inch ( 50 mm ) Voice Coil
- Size 12 3/16" Dia. for a 11 3/16" mounting hole, and a 5 3/8" mounting depth. 8 mounting screws
- Note that you can also get this speaker in an 4 Ohm Impedance
Thiele Small Specifications
- Revc = 3.600 ohms
- Fo = 35 Hz.
- Sd = 53.093 mM
- Md = 60.000 g
- Bl = 7.547T
- Qms = 2.379
- Qes = 0.906
- Qts = 0.656
- No = 0.549%
- SPL = 90 dB
- Vas = 130.532 mM
- Cms = 326.102u M/N
- Krm = 5.108 m Ohm
- Erm = 0.728
- Mms = 67.034 g
- Mmd = 60.000 g
- Kxm = 28.394 mH
- Exm = 0.577
