Vise Action Compression Latch
by Southco
P/N: E3-110-10
Specifications:
New (still in packaging - see 1st photo)
Stainless Stee
Qty. Available 24
Details
Vise Action Compression Latch
by Southco
P/N: E3-110-10
Specifications:

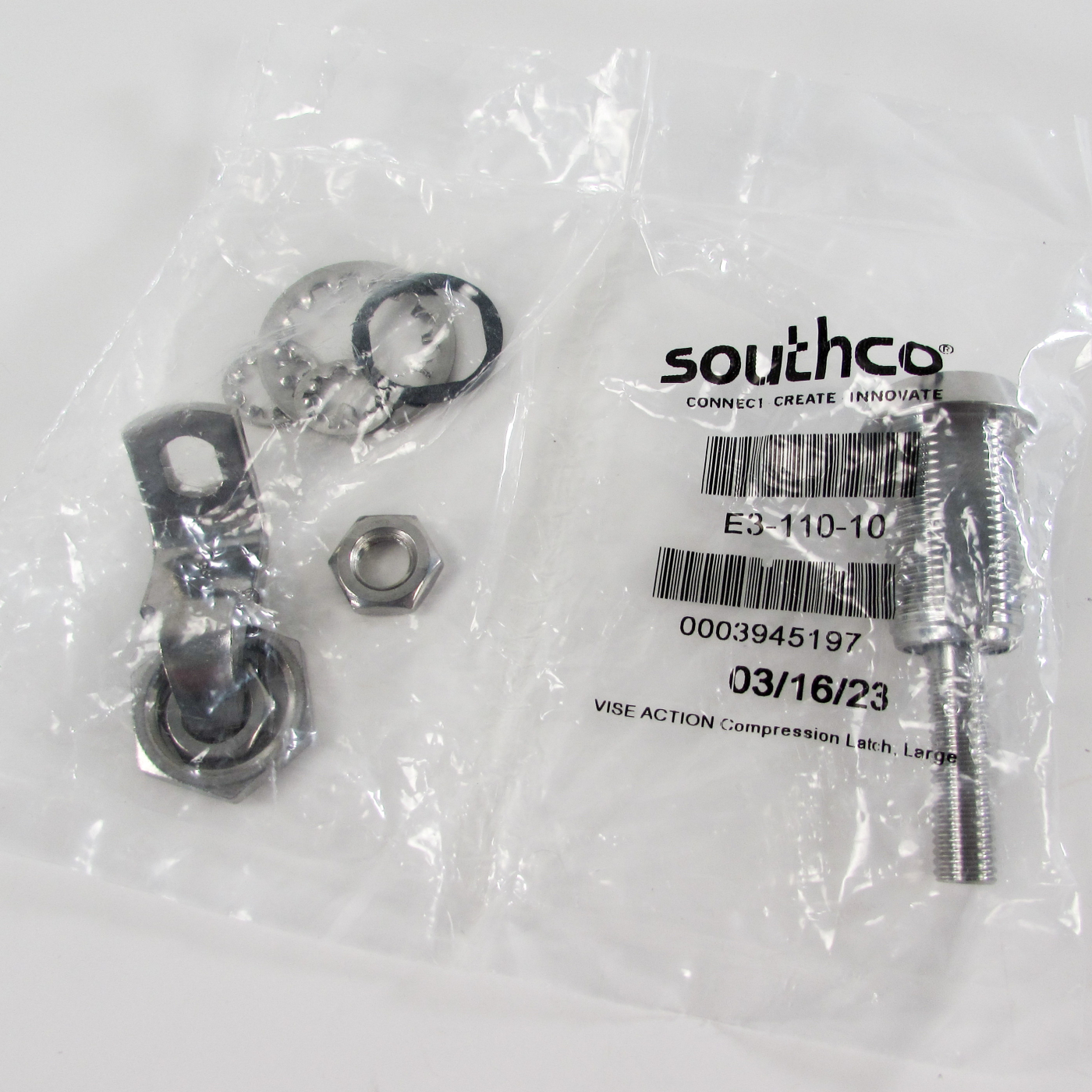

- New (still in packaging - see 1st photo)
- Stainless Steel
- Passivated Finish
- Adjustable Grip Type
- Single Hole Mount
- 8 mm Square Head Style
- Type A Rotation - Clockwise
| Min. Outer Panel Thickness (mm) |
0.00 |
| Max Outer Panel Thickness (mm) |
18.00 |
| Grip - Minimum (mm) |
16.40 |
| Grip - Maximum (mm) |
32.20 |
| Grip - Minimum (Cam Reversed) (mm) |
71.30 |
| Grip - Maximum (Cam Reversed) (mm) |
81.20 |

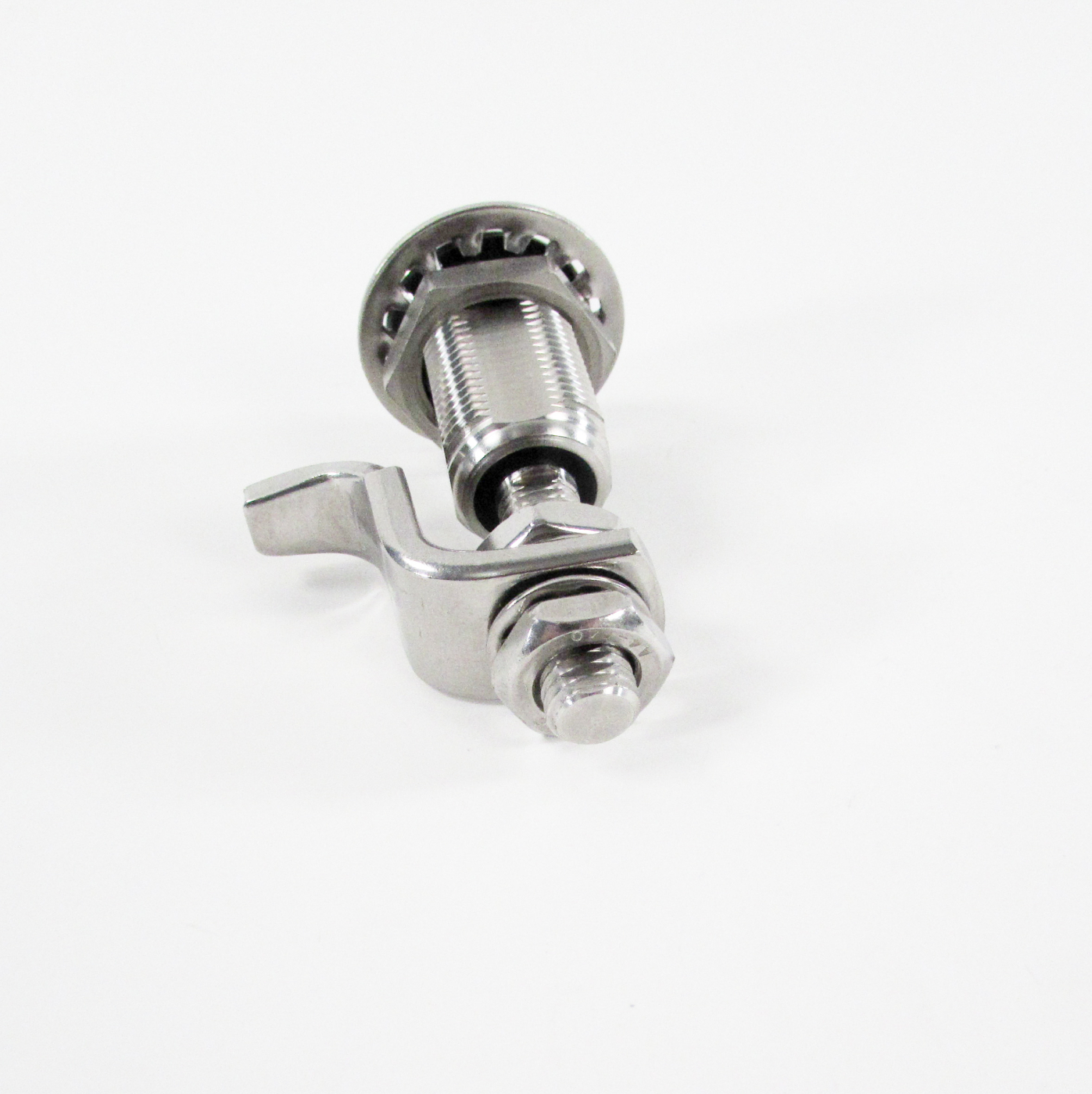

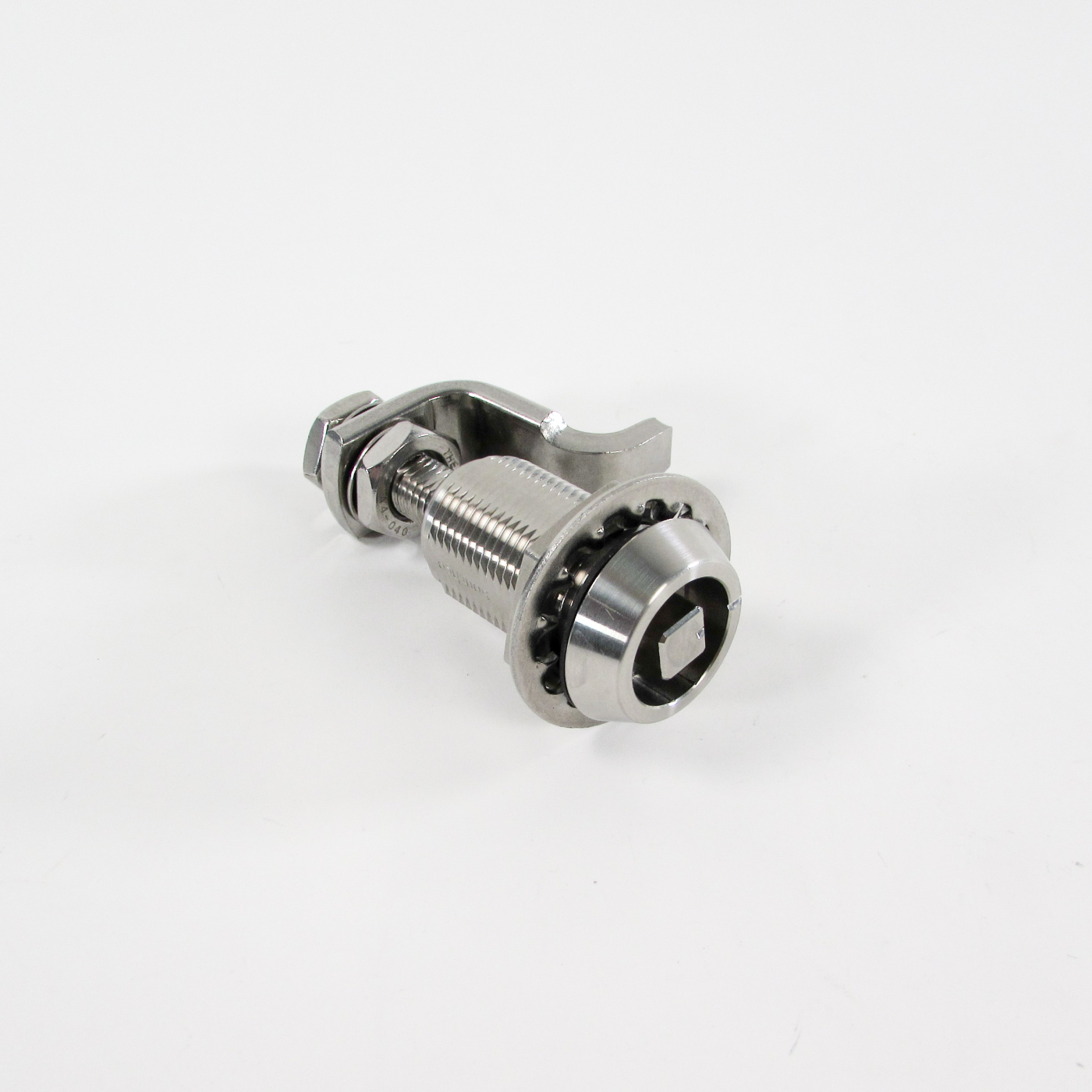

(Latch shown assembed in 2nd & 3rd photos)
Free USA shipping and handling!
Feel free to contact us with any questions.
