Mavin EM-312 Speaker Kit 3 Way 12" Design 8 ohms 275 Watts - 24Hz to 20KHz
Qty. Available 30
Details
Mavin's Own 12 inch 3 way Kit 275 Watts RMS
EM-312 Kit
A wonderful sounding 12 inch three way kit based on our own EM-TL3006Y-8 Super woofer, with it stiff cone it gives out deep smooth bass, it is the heart of this 3 way kit. One designed to reproduce warm natural mids and clean accurate highs, all brilliantly controlled by our own T-306 1000 watt crossover, one well matched to each of the drivers in this kit, hitting each of the drivers sweet spots perfectly, which will give you a well balanced no frills, good sounding 3 way speaker. Build a simple ported cabinet of 2.67 cf. ( with internal dimentions of 12.5" by 12.5" by 29.5" using 3/4 material you get outside measurments of 31" by 14" by 14" tuned to 36Hz. using a 3" D by 3.250" L round port tube.)
What you will expect is something similar to the Old School JBL or Cerwin Vega sound, with a clean you feel it in the chest bass, one your neighbors will enjoy as well. A design great for todays main stream music and still able to reproduce the warmth of yesterdays melodic masterpieces and toe tapping diddies from times gone by. A very versatile design sure to please the majority of the listeners ears, a kit able to be built using simple basic hand tools and skills, a wonderful bonding project for parents and kids oif all ages. Something to share and enjoy with those you love, one that you can grow with and pass on to those you care about. Music is something that can enlighten and expand someones horizons or tastes of music.
Assembly is straight forward, as the crossover is clearly marked, a small bit of soldering a few lentghts of wire to the drivers and terminal cups is all that is required it is a perfect project for the experienced builder or novice alike. Either way you will end up with something you can be proud to show and share with friends and family, a ture IDIM ( I Did It Myself ) we're here for some hand holding should you have questions or need a bit of guidance as you go forward, you either just a phone call or email away from our help. You will surprise yourself at what you accomplished in doing this kit, something you can be proud of.
Features:
You get two each of the following components,

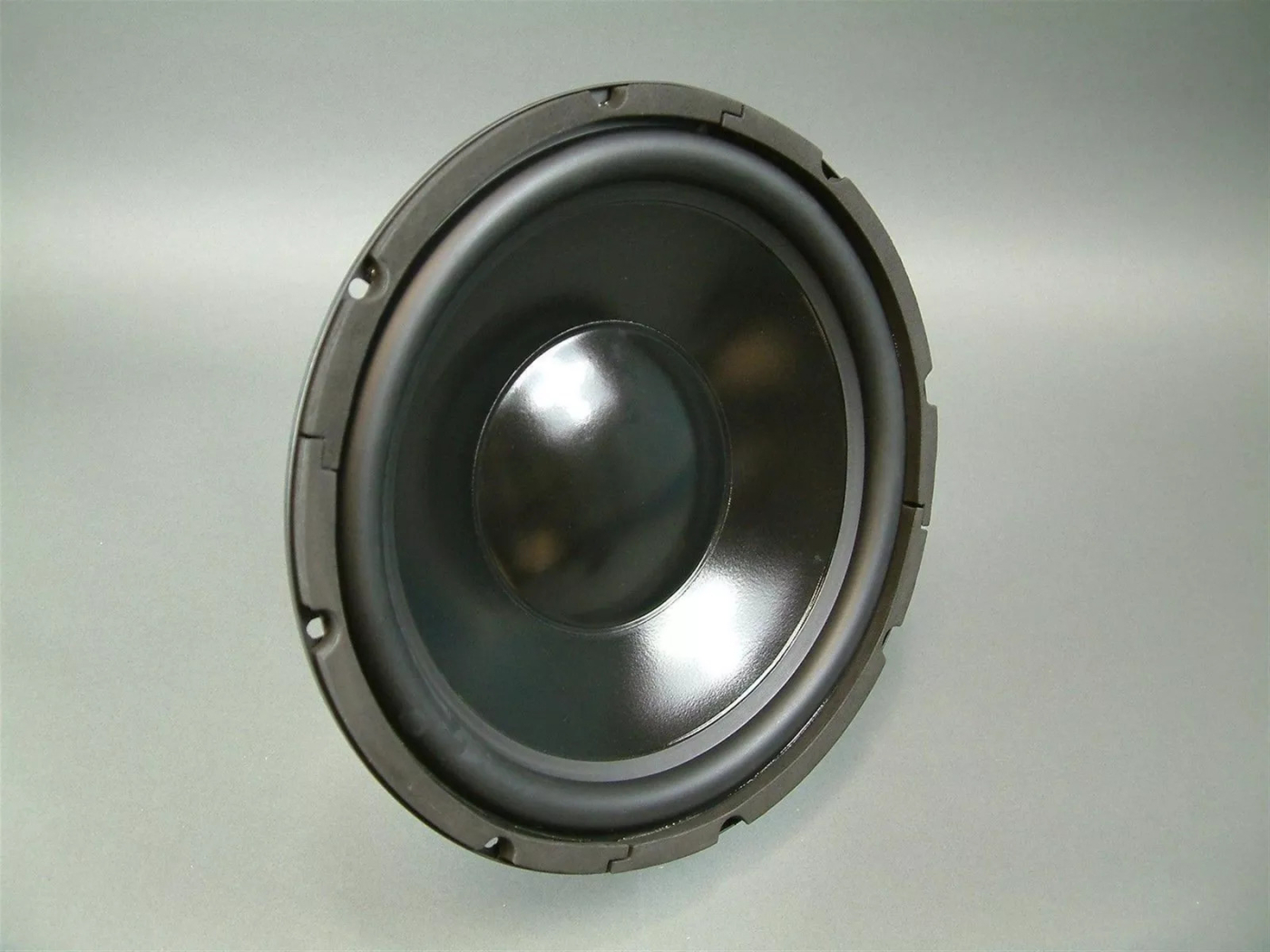

Mavin EM-TL3006Y-8 Woofer 12"
ESS Labs 5" Closed Back Mid-Range
Mavin EM-TL10-21-8 Softdome Tweeters
EM-T-306 1000 Watt 12dB 3 Way Crossovers
Terminal Cups
You wil need to come up with a 3" port tube, it needs to be 3 1/4" long, some nice 3/4" minimum plywood.
You can modify as you like, just try to keep the volume to about the 2.67cf for optimum performance to get the 24Hz - 20KHz response.

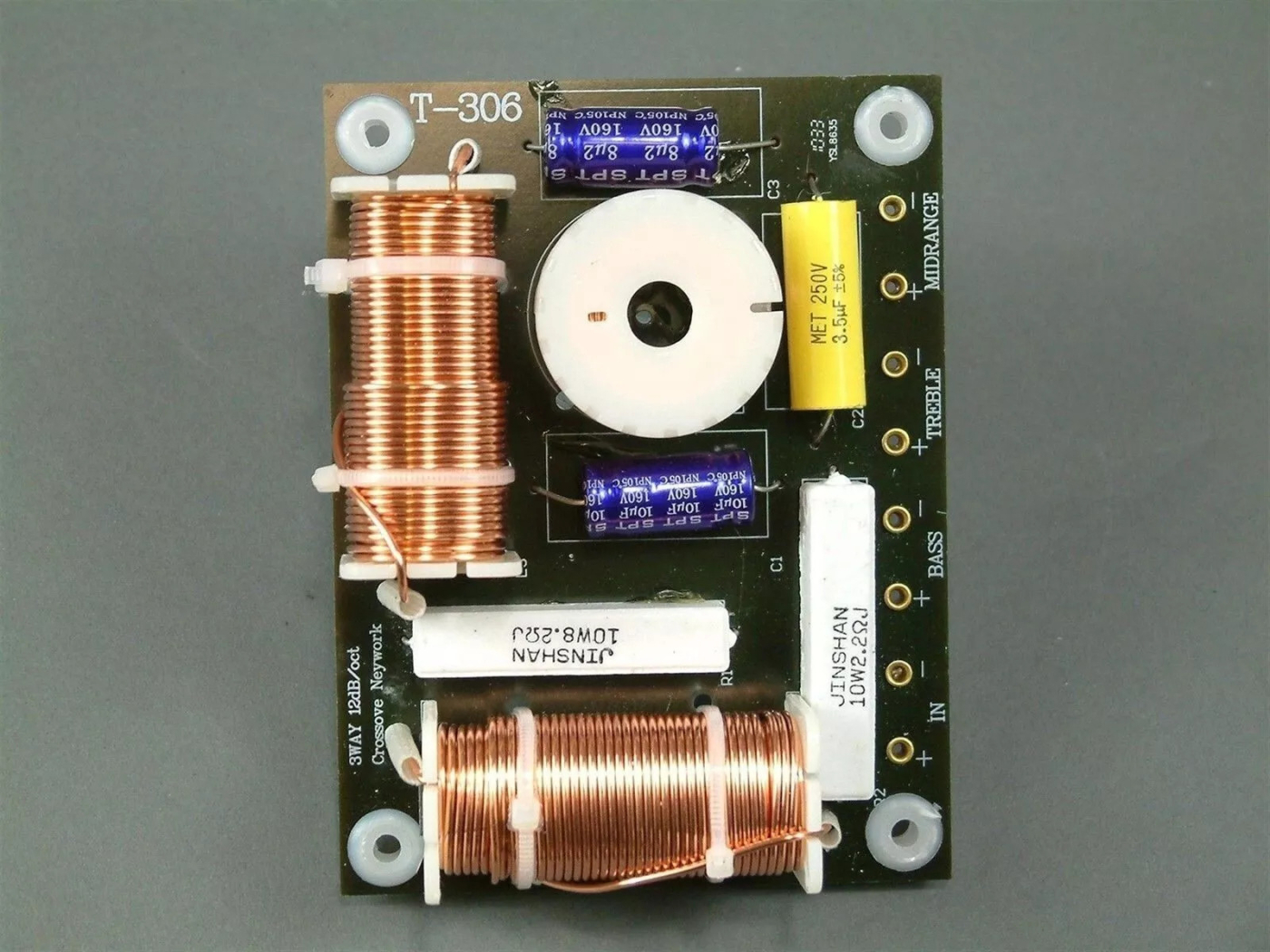

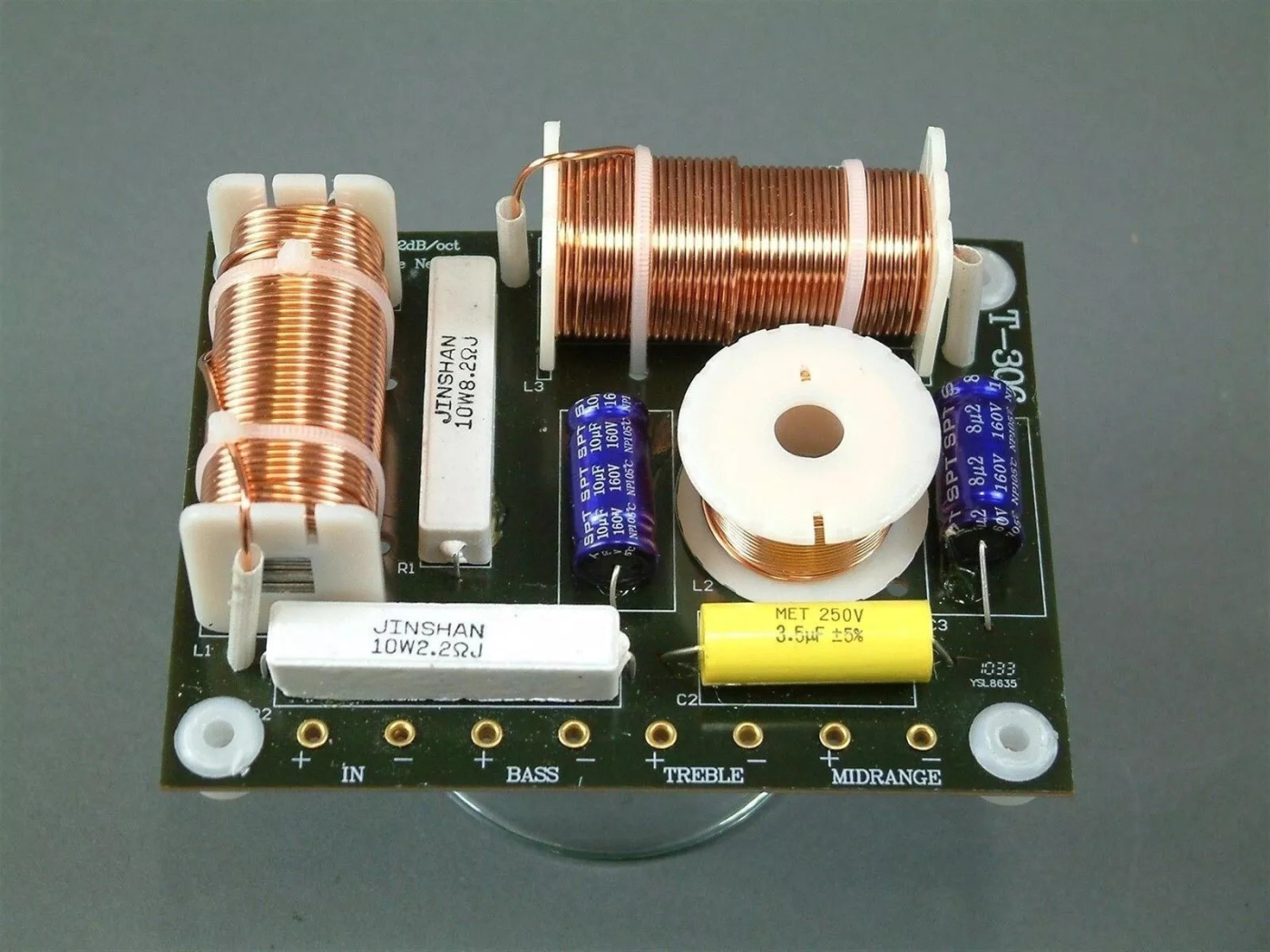

All Tied together by our Mavin T306 1000 watt 3 way crossover perfectly to the drivers above, complete with a nice set of terminal cups.
Build a nice set of cabinets with a volume of about 2.5 to 3 cubic feet and you should be fine. I prefer ported designs because of the ease in matching the cabinet to the woofer, but sealed is an option if that is the way you choose to go..
Stiff Pressed Paper Cone with Rubber Surround
275 Watts RMS Power Rating
8 ohm impedance
A Practical Frequency Range from 24 Hz. to 3800 Hz.
3 inch ( 75 mm ) Voice Coil
Size 12 3/16" Dia. for a 11 3/16" mounting hole, and a 5 3/8" mounting depth. 8 mounting screws
Thiele Small Specifications
- Revc = 7.200 ohms
- Fo = 36.121 Hz.
- Sd = 53.093 mM
- Md = 60.000 g
- Bl = 9.458T
- Qms = 2.443
- Qes = 1.225
- Qts = 0.816
- No = 0.431%
- SPL = 90 dB
- Vas = 115.926 mM
- Cms = 289.613u M/N
- Krm = 4.148 m Ohm
- Erm = 0.793
- Mms = 67.034 g
- Mmd = 60.000 g
- Kxm = 31.652 mH
- Exm = 0.625
- XMax = 10mm

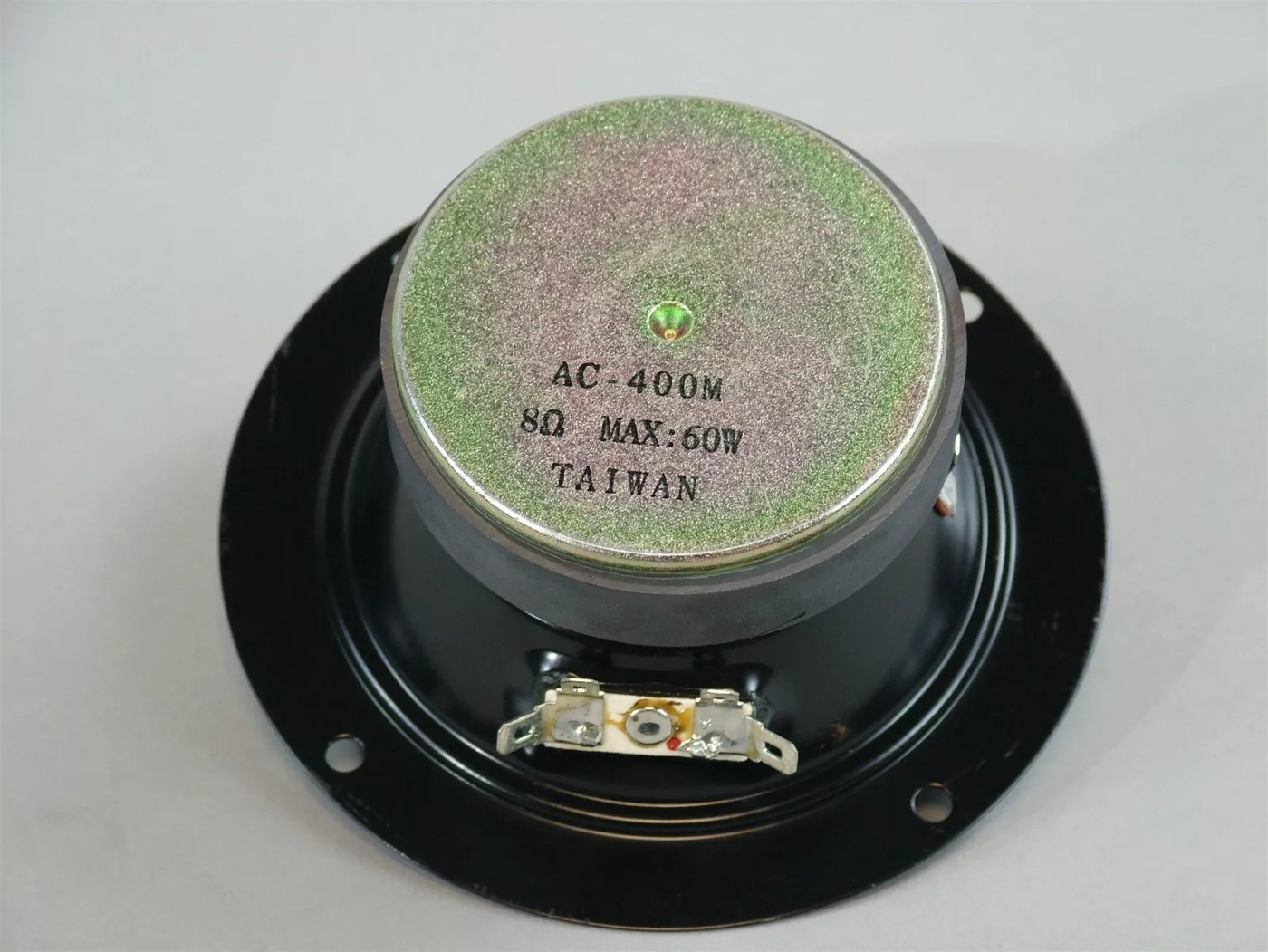

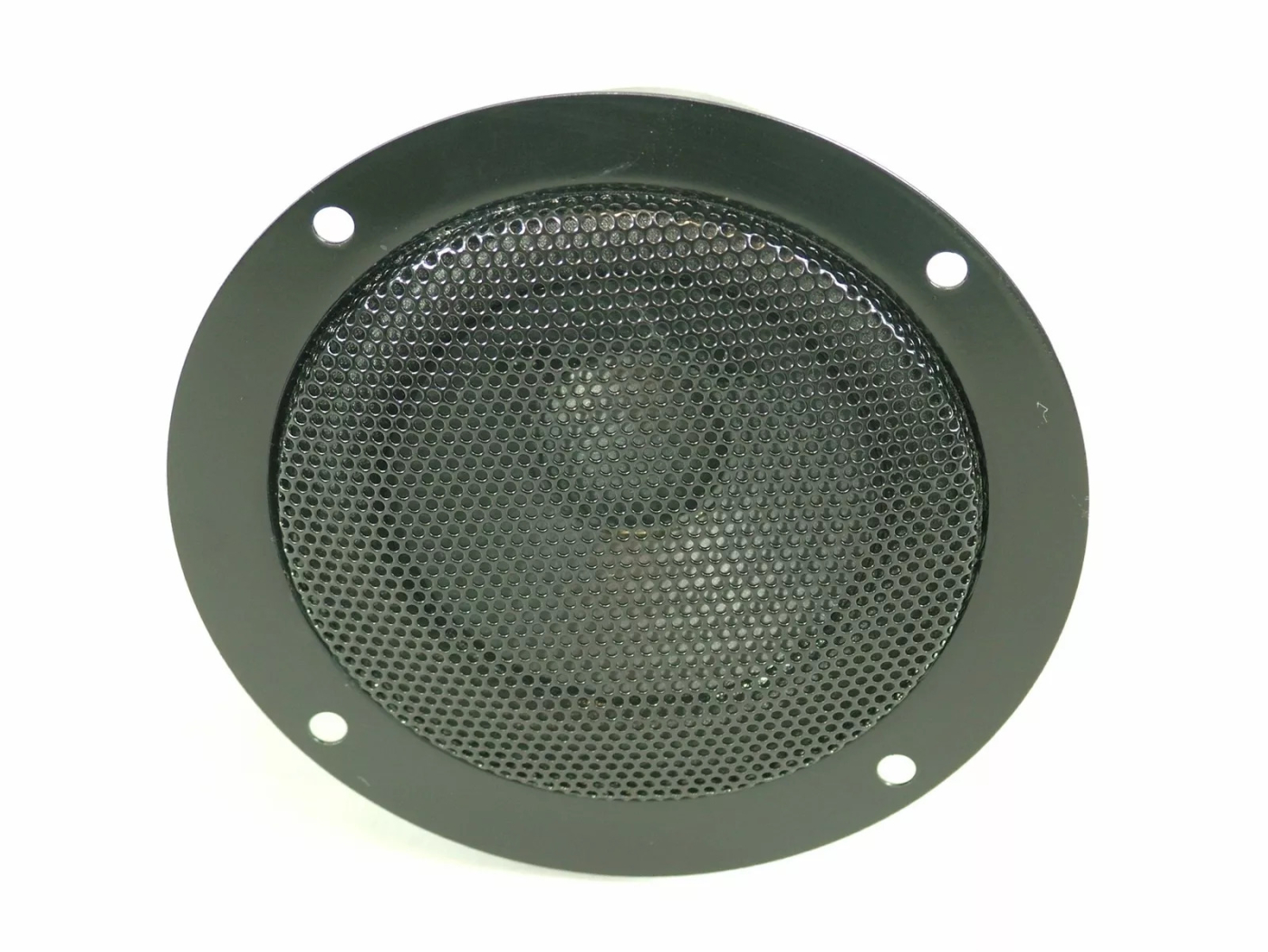

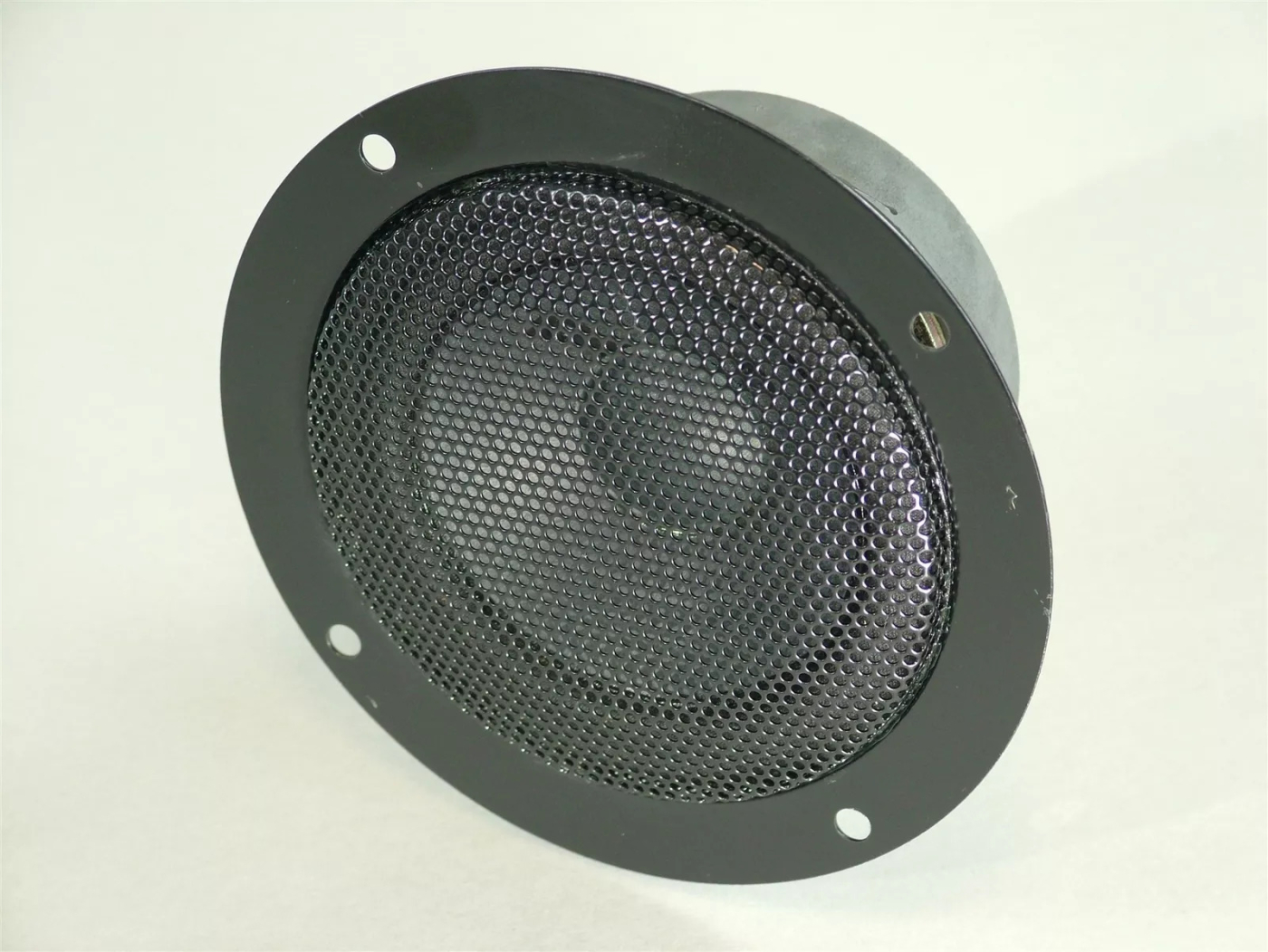

This is a super mid range speaker, it is a paper cone with cloth roll Closed back
- 8 ohm
- 60 watts
- 3/4" voice coil
- 12 oz. magnet
- Protective grill
- Revc = 6.8514 ohms
- Fs = 523.6831 Hz.
- Zmax = 24.7176 ohms
- Ro = 13.0134 ohms
- Qms = 10.7399
- Qes = 4.1186
- Qts = 2.9770
- Le = 0.0694 mH @ 1kHz.
- XLe = 7.4632 impedance @ 1 kHz.
- FLe = 3.3476 phase @ 1kHz.

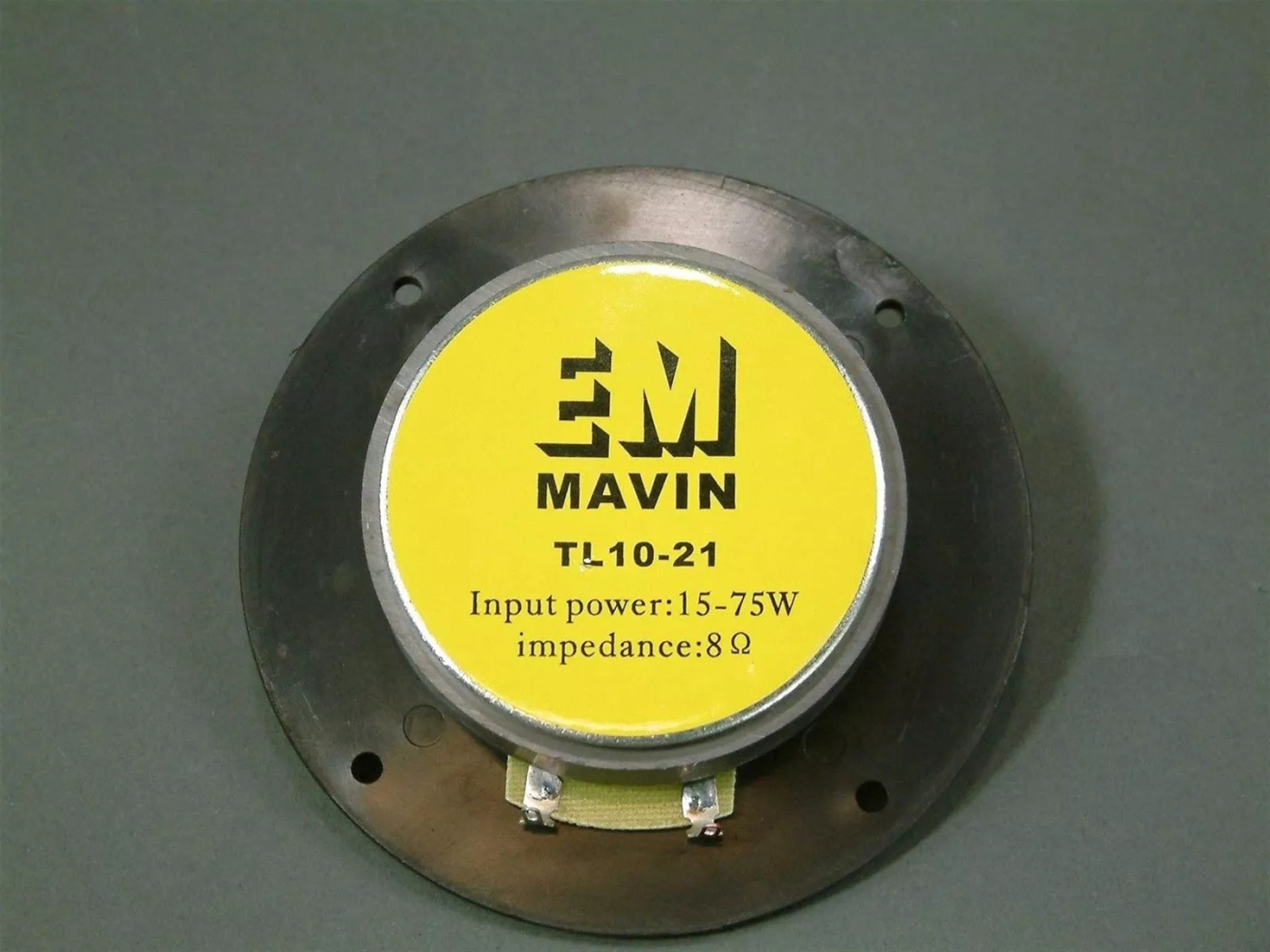

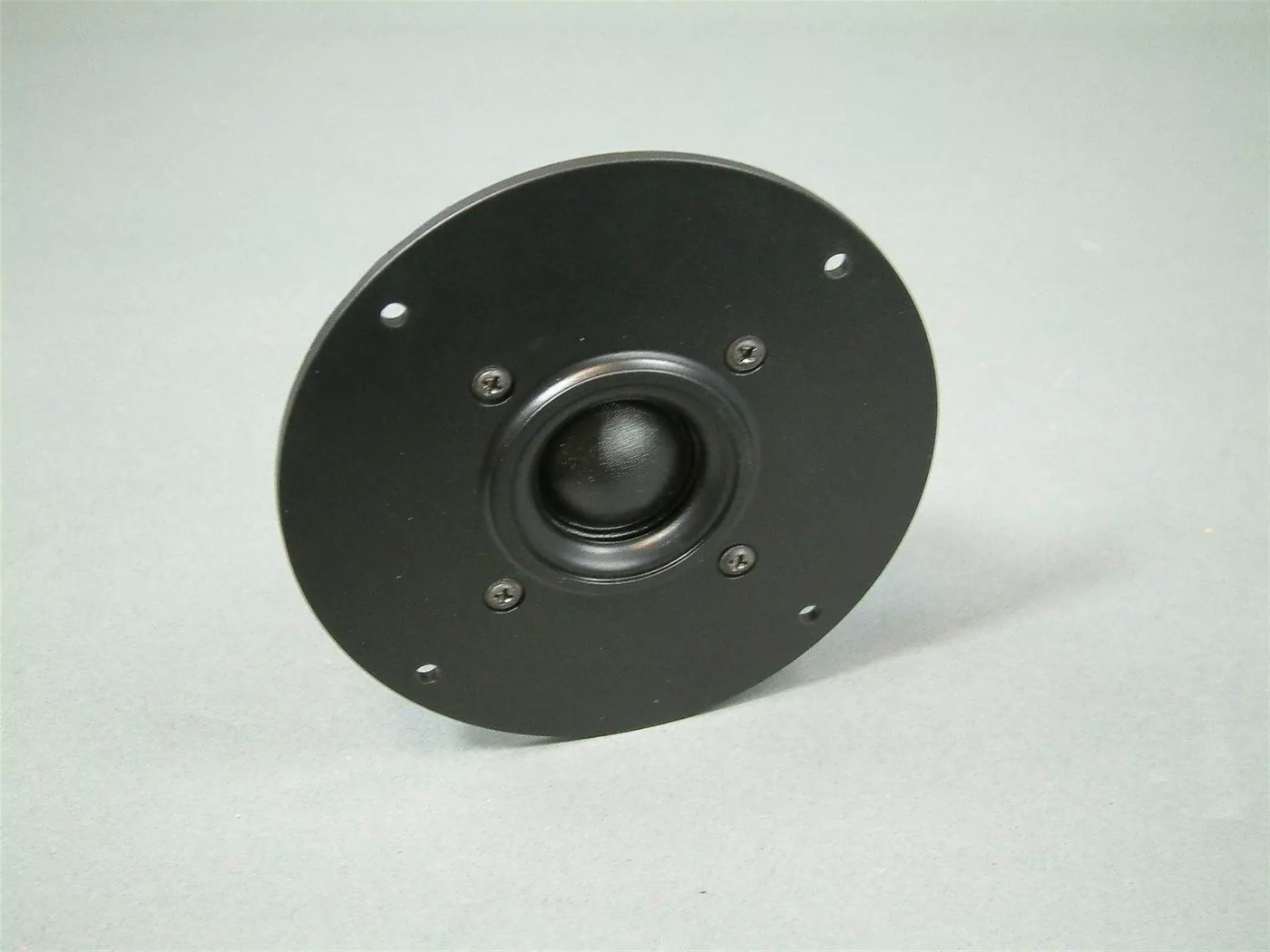

The Tweeters are
- Soft Fabric Dome ( gives you a warm rich tone )
- 75 watts RMS
- 150 Watts Peak
- 91 db
- 1.4 kHz. to 20 kHz.
- 1" voice coil
- 8 Ohms
