Mavin 10" Woofer 8 ohm 3 Way Kit 225 watts RMS
Qty. Available 25
Details
Mavin's Own 10 inch 3 way Kit 225 Watts RMS
EM310 Kit
Great full range sound, about 30 Hz. to 20 KHz.
Nice Bass, Rich Mid Range, and Warm Precise Highs
What you get in the kit.
Two Mavin 10 Inch High Output 8 Ohm Woofers
Two ESS 5 inch 8 Ohm Closed Back Mid Range Drivers
Two Mavin TL10-21 Soft Dome Tweeters 8 Ohm
A Pair of Mavin T-306 1000 Watt 8 Ohm Crossovers With Terminal Cups

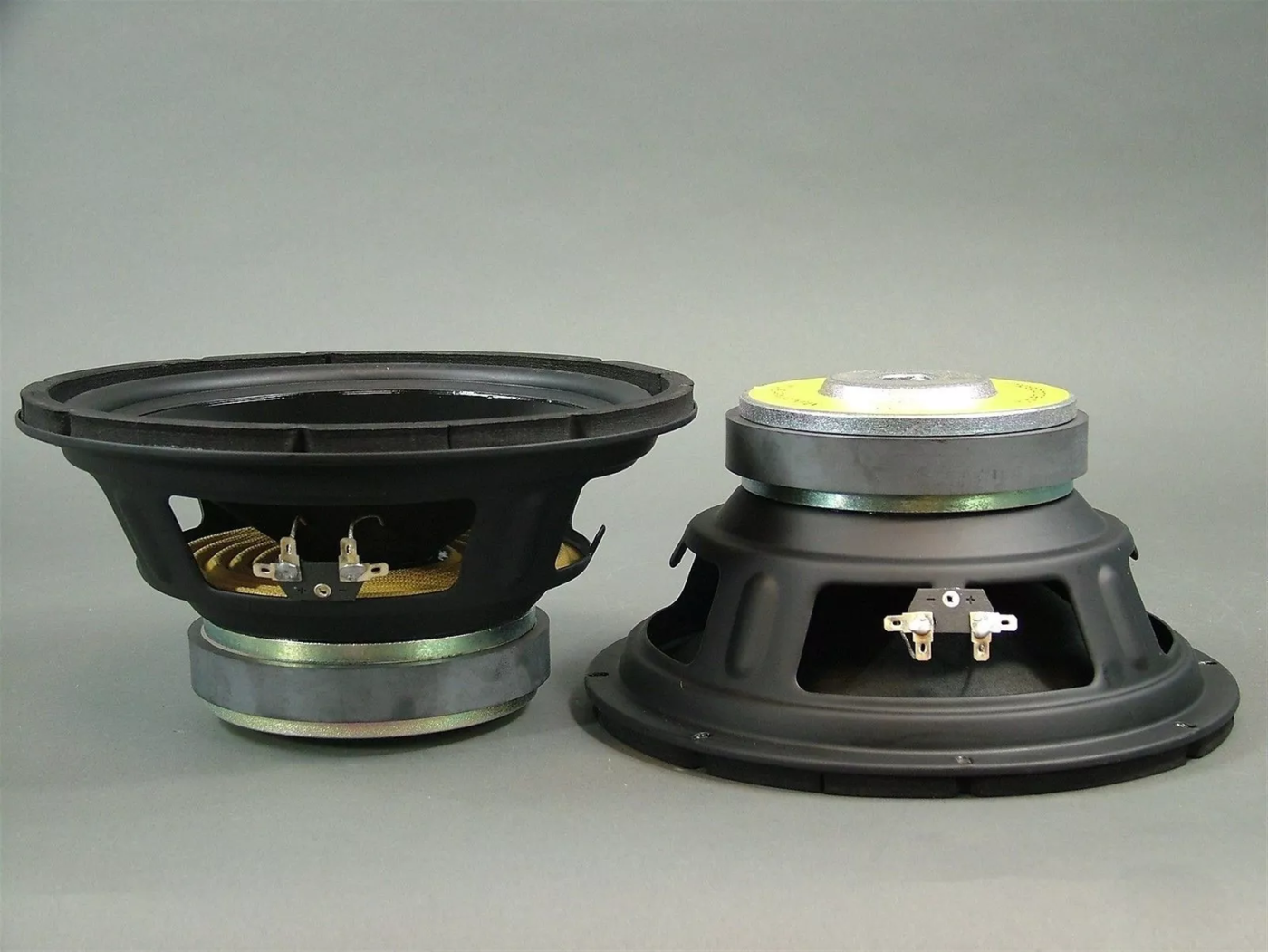

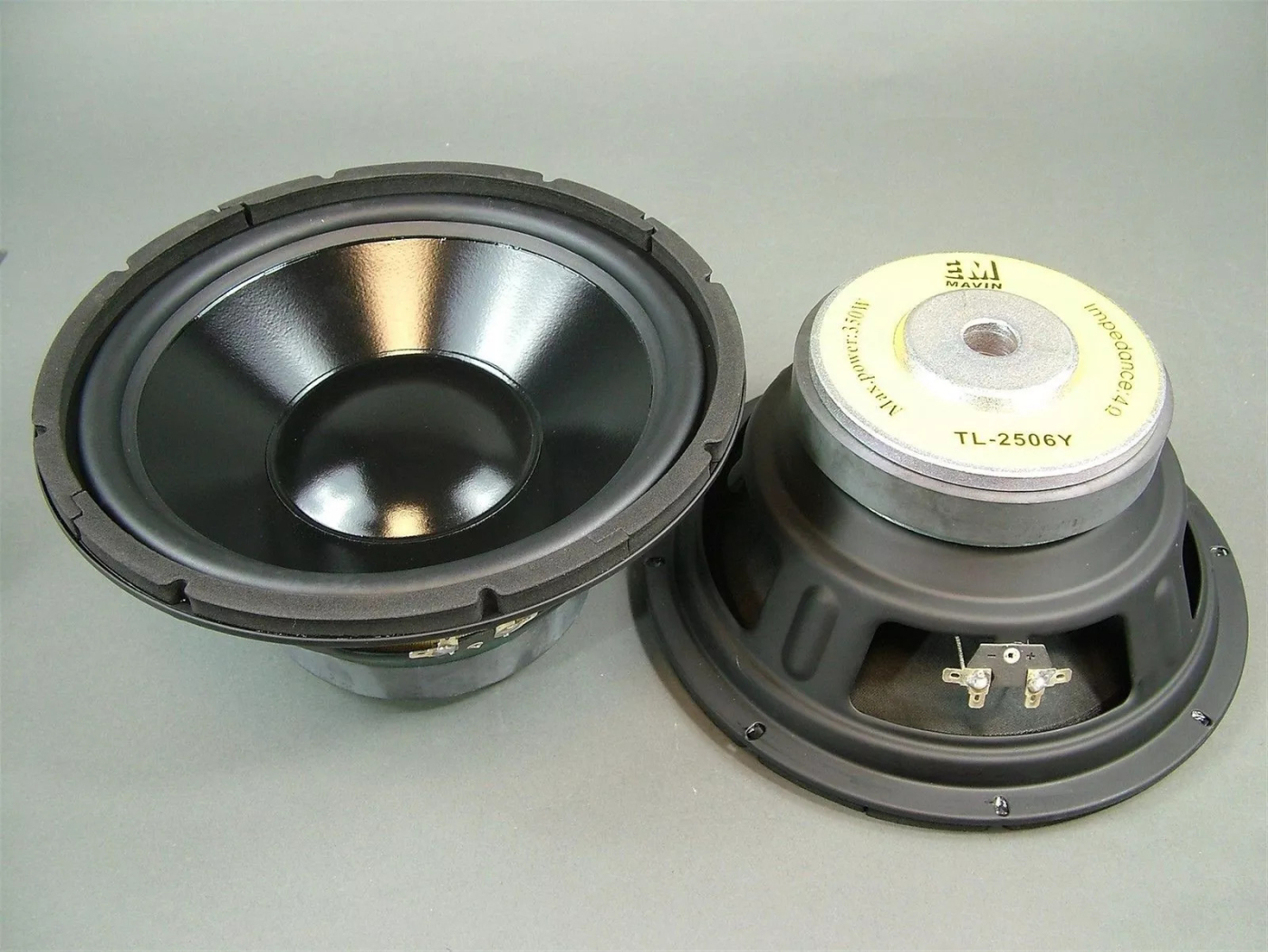

Mavin's TL2506Y series is a top of the line Speaker Series, with a mix of high durability and great sound reproduction. You get a speaker that sounds great and that will last for years, what more can you ask for?
This is a very heavy and efficient speaker, with a 2" voice coil it can handle up to 225 watts RMS and 350 watts peak. Pumping out the sound is just what this speaker was designed for with a SPL rating of 93 dB and a practical range from 30 Hz. to 5000 Hz. you will find that the EM-TL2506Y-8 is a great speaker to replace that blown driver, or for any new project you have in the wings.
Great for any speaker system or design. Perfect as a M&K Replacement, JBL, Cerwin Vega, Klipsch and many more.
Features
- Stiff Treated Paper Cone with Rubber Surround
- 225 Watts RMS Power Rating
- 8 ohm impedance
- A Practical Frequency Range from 30 Hz. to 5000 Hz.
- 2 inch ( 50 mm ) Voice Coil
Size 10 3/16" Dia. for a 9 3/16" mounting hole, and a 4 3/8" mounting depth. 8 mounting screw holes
Thiele Small Specifications
- Revc = 7.200 ohms
- Fo = 40 Hz.
- Sd = 35.633 mM
- Md = 50.000 g
- Bl = 9.419T
- Qms = 2.057
- Qes = 1.096
- Qts = 0.715
- No = 0.298%
- SPL = 93 dB
- Vas = 53.263 mM
- Cms = 295.418u M/N
- Krm = 5.725 m Ohm
- Erm = 0.759
- Mms = 53.868 g
- Mmd = 50.000 g
- Kxm =40.076mH
- Exm = 0.582

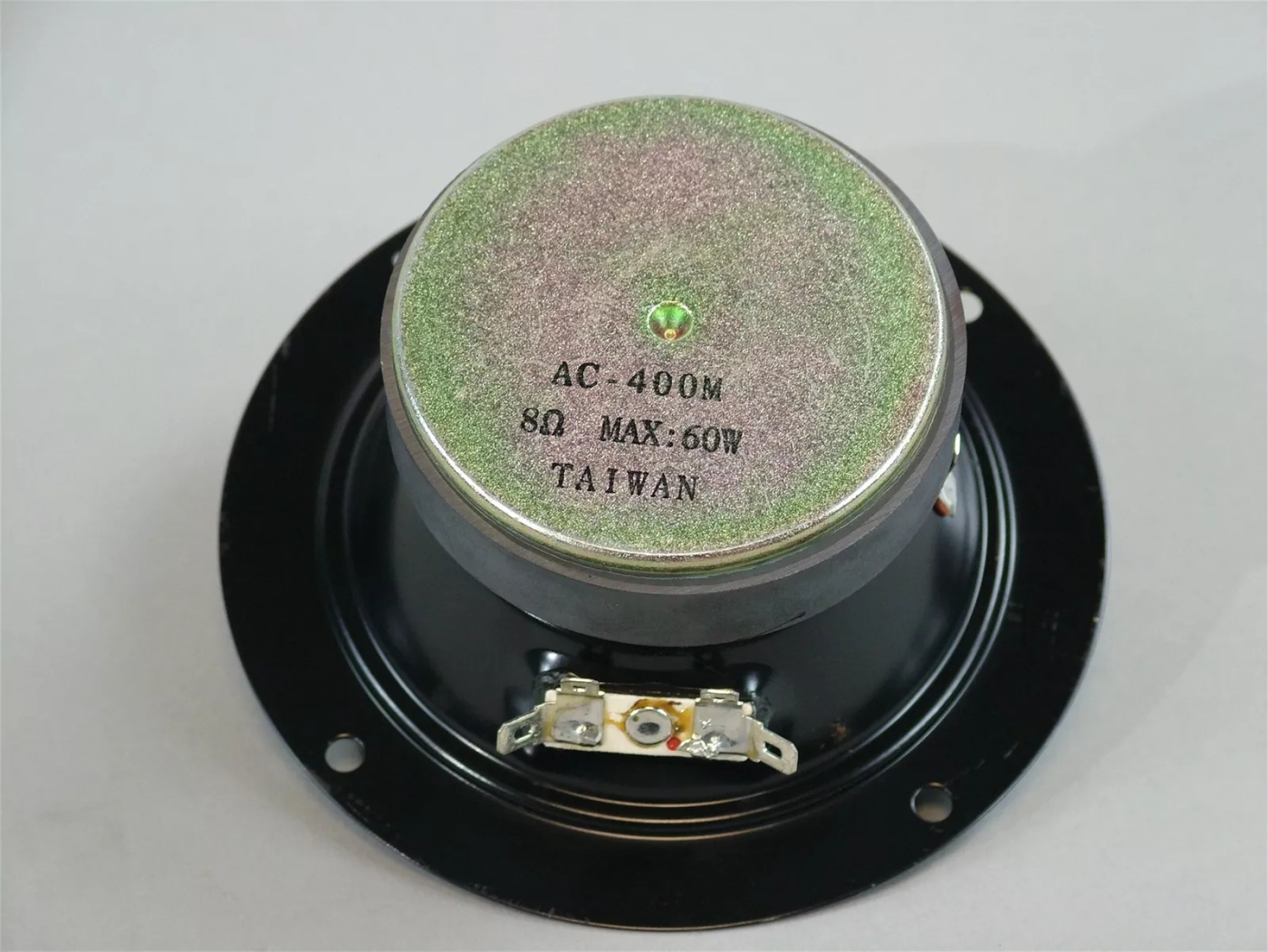

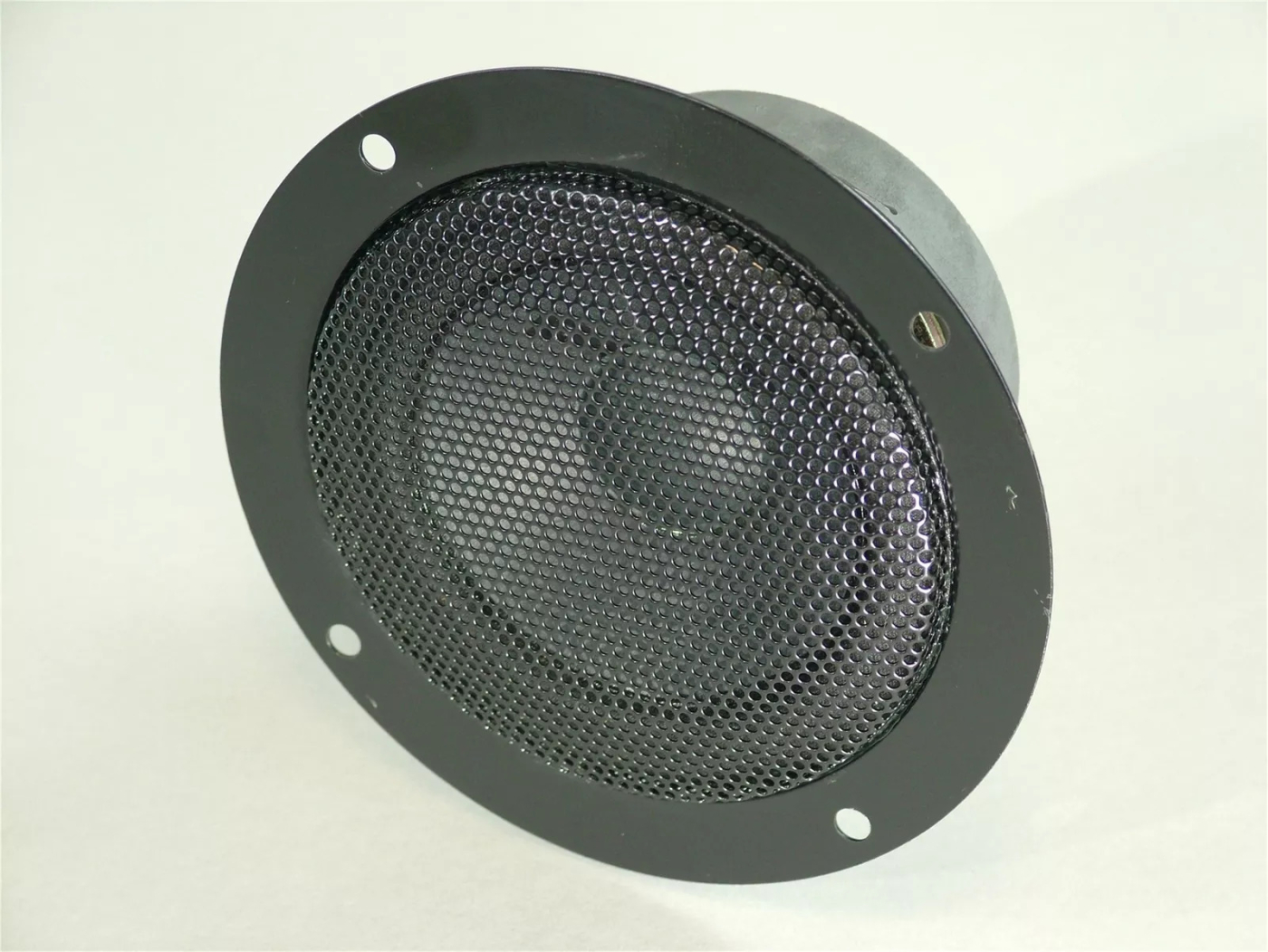

This is a super mid range speaker, it is a paper cone with cloth roll Closed back
- 8 ohm
- 60 watts
- 3/4" voice coil
- 12 oz. magnet
- Protective grill
- Revc = 6.8514 ohms
- Fs = 523.6831 Hz.
- Zmax = 24.7176 ohms
- Ro = 13.0134 ohms
- Qms = 10.7399
- Qes = 4.1186
- Qts = 2.9770
- Le = 0.0694 mH @ 1kHz.
- XLe = 7.4632 impedance @ 1 kHz.
- FLe = 3.3476 phase @ 1kHz.

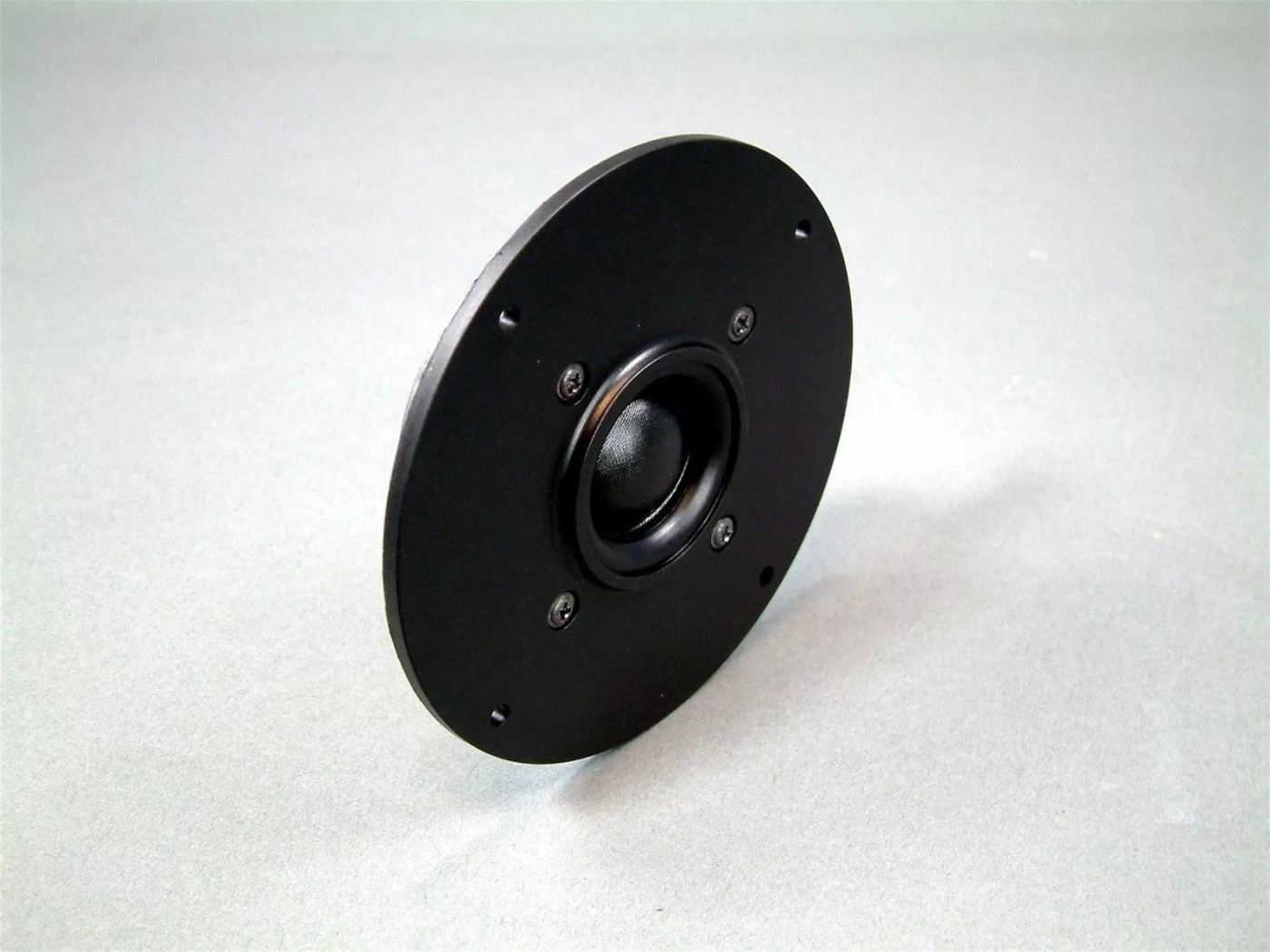

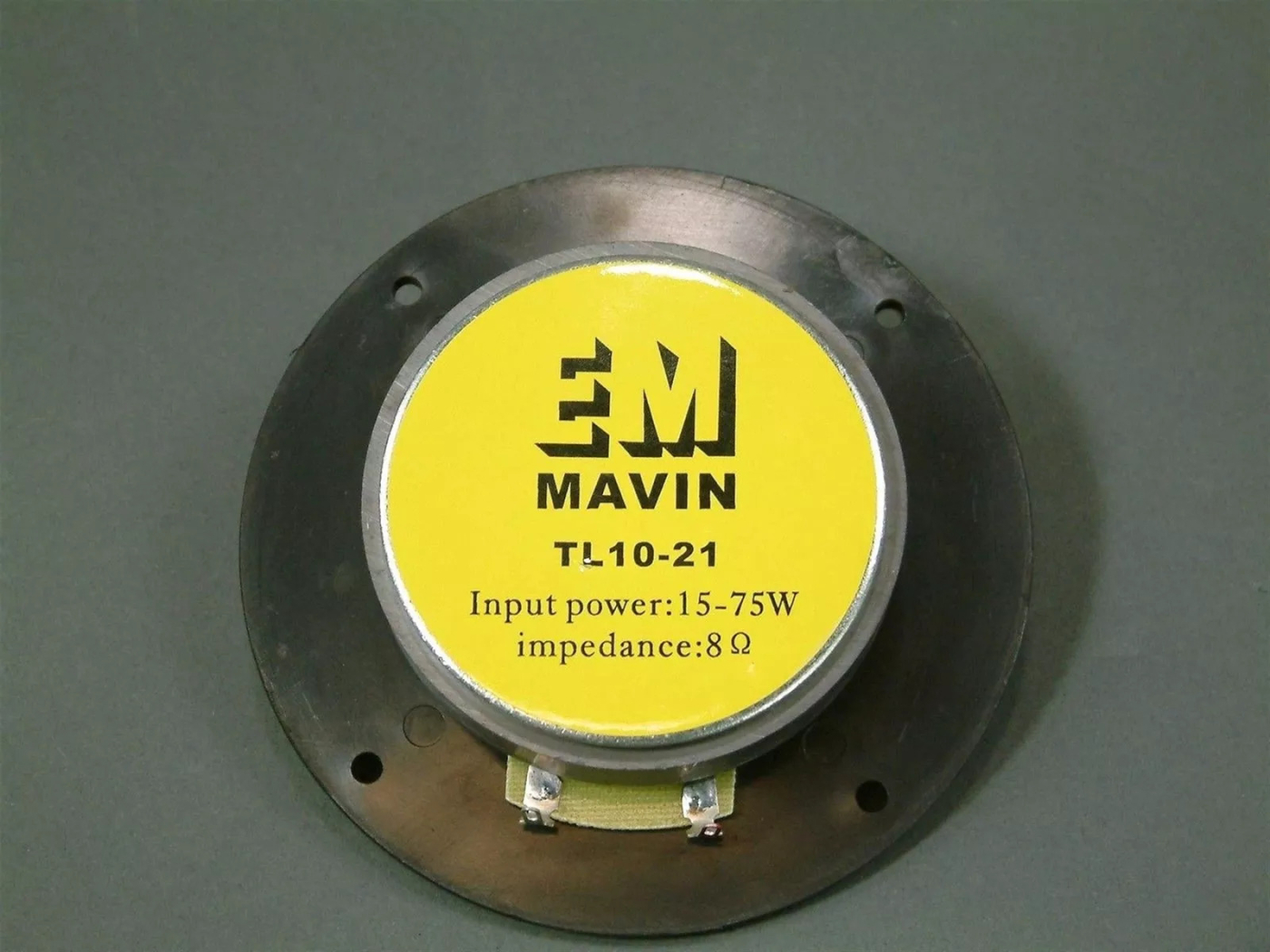

The Tweeters are
- Soft Fabric Dome ( gives you a warm rich tone )
- 75 watts RMS 150 Watts Peak
- 91 db
- 1.4 kHz. to 20 kHz.
- 1" voice coil
- 8 Ohms
All Tied together by our Mavin T306 1000 watt 3 way crossover perfectly to the drivers above, complete with a nice set of terminal cups.
Build a nice set of cabinets with a volume of about 2.5 to 3 cubic feet and you should be fine. I prefer ported designs because of the ease in matching the cabinet to the woofer, but sealed is an option if that is the way you choose to go..
