Lot of 5 Huber Suhner 16TNC-50-3-111/133N Right Angle Cable Plug

Details

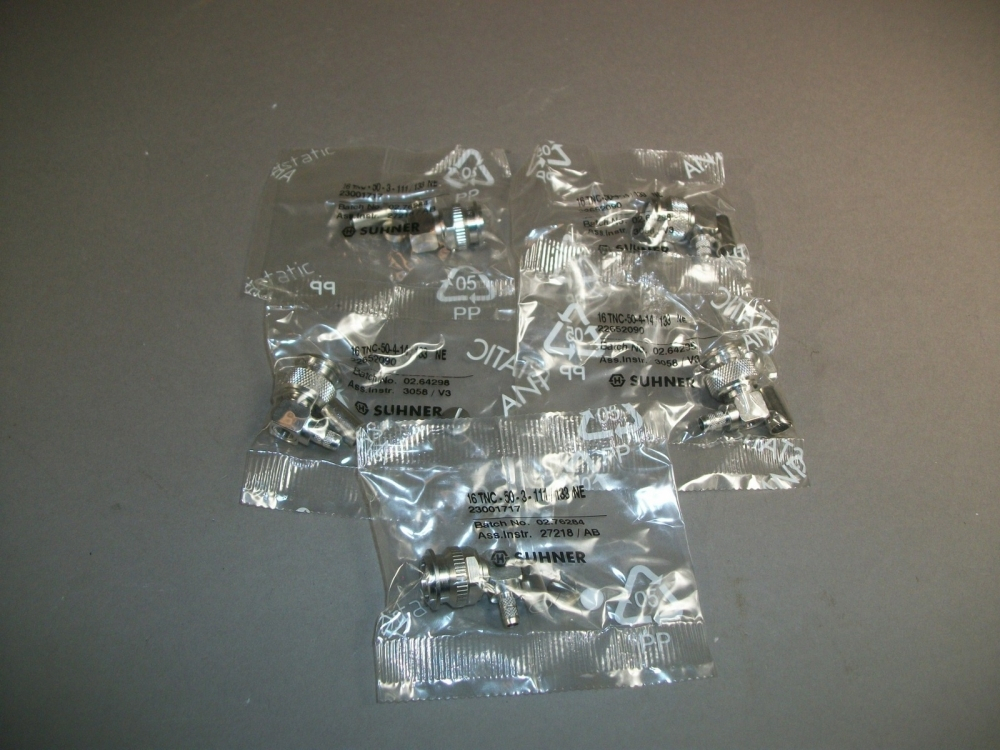

Lot of 5 pieces
Huber Suhner
P/N: 16TNC-50-3-111/133N

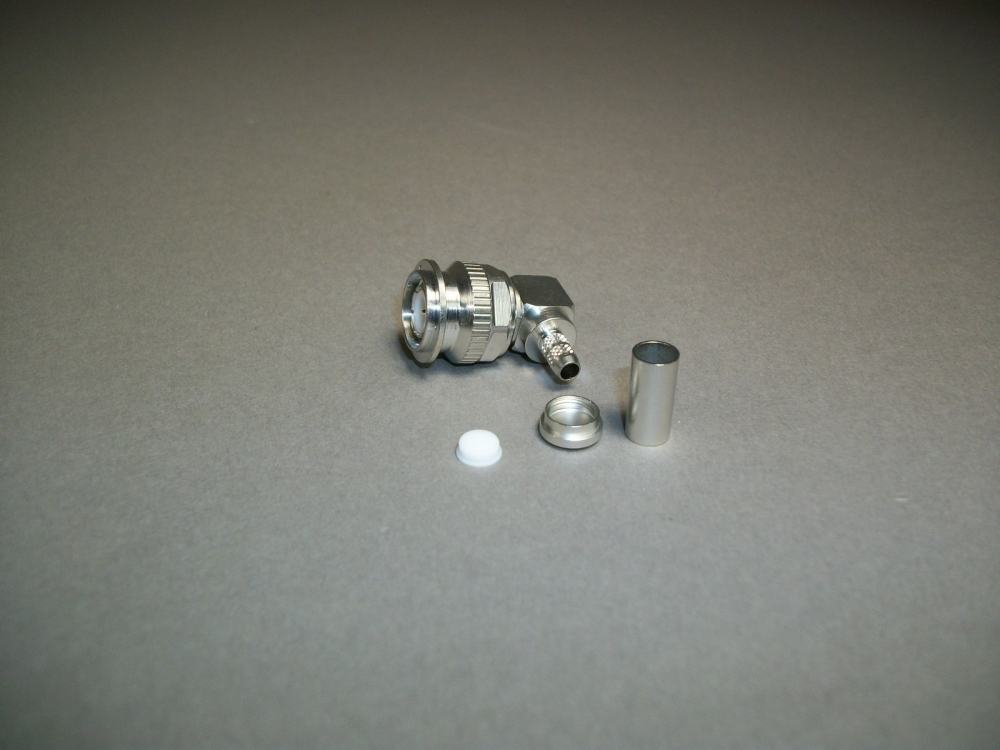

Right Angle Cable Plug

Series / Pattern Highlights TNC - Type / Pattern 16
Mechanical data
Cable Entry Centre Contact soldered
Cable Entry Outer Contact crimped
Dielectric Size 3

Electrical data
Impendance 50 O
Interface Freq max = 11 GHz
Frequency Range 1 0 ... 2.50 GHz
VSWR Range1 = 1.0520
Return Loss Range1 > 32 dB

Environmental and general data
Operating Temp min -65 °C
Operating Temp max 165 °C
Weight 0.0199 kg
Number of Matings 500
Cable Retention Force Value considers max. load without irreversible variations of specifications 260 N

Shipped from TN Listed for by KK - Located at: WB143 (Q- 16TNC-50-3-111/133N) on E
