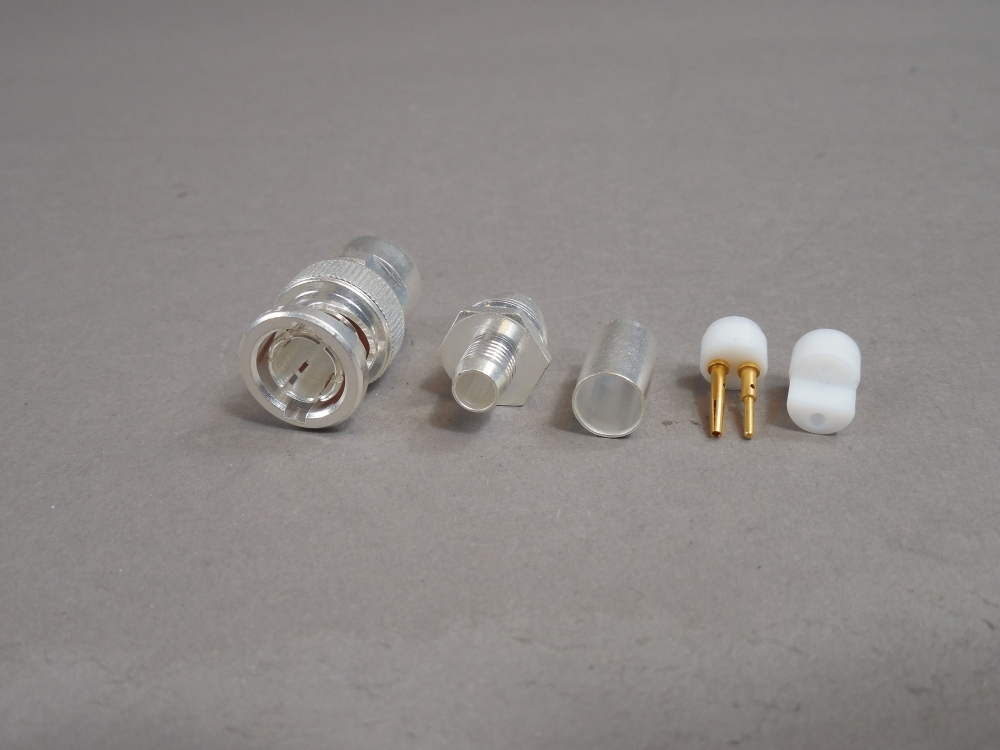

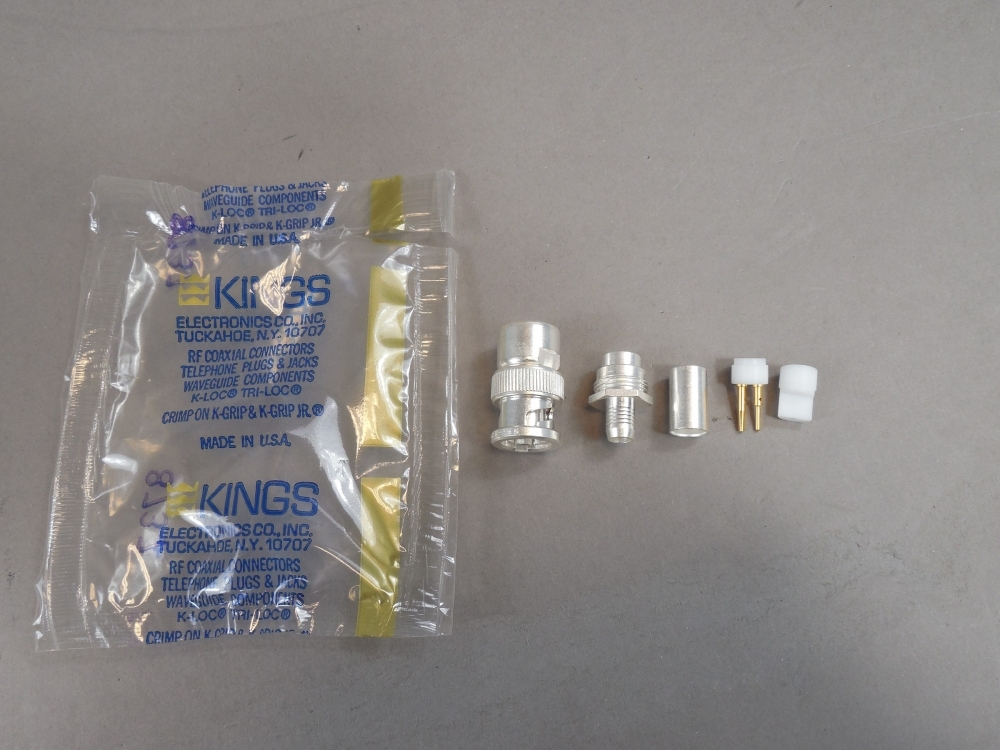

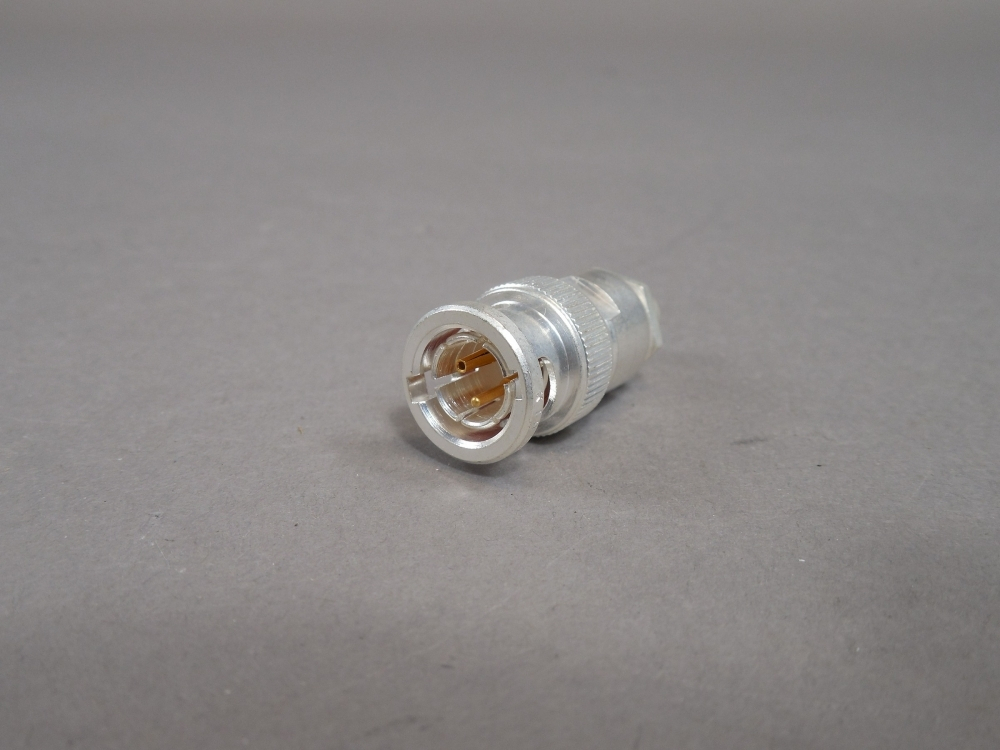

Kings 2015-9-5 BNC RG-108U Electrical Connector Plug 5935-01-018-1713

Brand: Kings Electronics NSN: 5935-01-018-1713 P/N: 2015-9-5 RG-108/U MRC Parameter Characteristics

Qty. Available 95

Price: $7.50

Quantity:

Total:

Details

Brand: Kings Electronics
NSN: 5935-01-018-1713
P/N: 2015-9-5
RG-108/U

MRC	Parameter	Characteristics
AAQL	III Body Style	Straight shape, internal coupling
ABHP	Overall Length	1.500 inches maximum
ADZC	Environmental Protection	Shock proof and vibration resistant
AFQW	Mating End Quantity	1
AFQX	Contact Position Arrangement Style	Twin-X single mating end
AFQZ	Contact Removability	Nonremovable single mating end single contact grouping
AFRT	Shell Type	Solid
AFRV	Connector Locking Method	Bayonet latch
AFRW	Connector Cable Strain Relief Method	Compression nut
CQTM	Terminal Location	Back single mating end single contact grouping
CQYH	Contact Surface Treatment	Gold single mating end single contact grouping
CRBJ	Contact Surface Treatment Document and Classification	MIL-G-45204, ty 2, class 2 mil spec single treatment response single mating end single contact grouping
CSCF	Terminal Type	Solder well single mating end single contact grouping
CSPT	Shell Material	Copper alloy
CXCG	Included Contact Quantity	1 single mating end 1ST contact grouping
CXCG	Included Contact Quantity	1 single mating end 2ND contact grouping
CXCL	Included Contact Type	Coaxial pin single mating end single contact grouping
PMLC	Precious Material and Location	Contact surface gold
PMWT	Precious Material and Weight	0.001 gold grains, troy
PRMT	Precious Material	GOLD

Shipped from CA & TN Located in WB162
