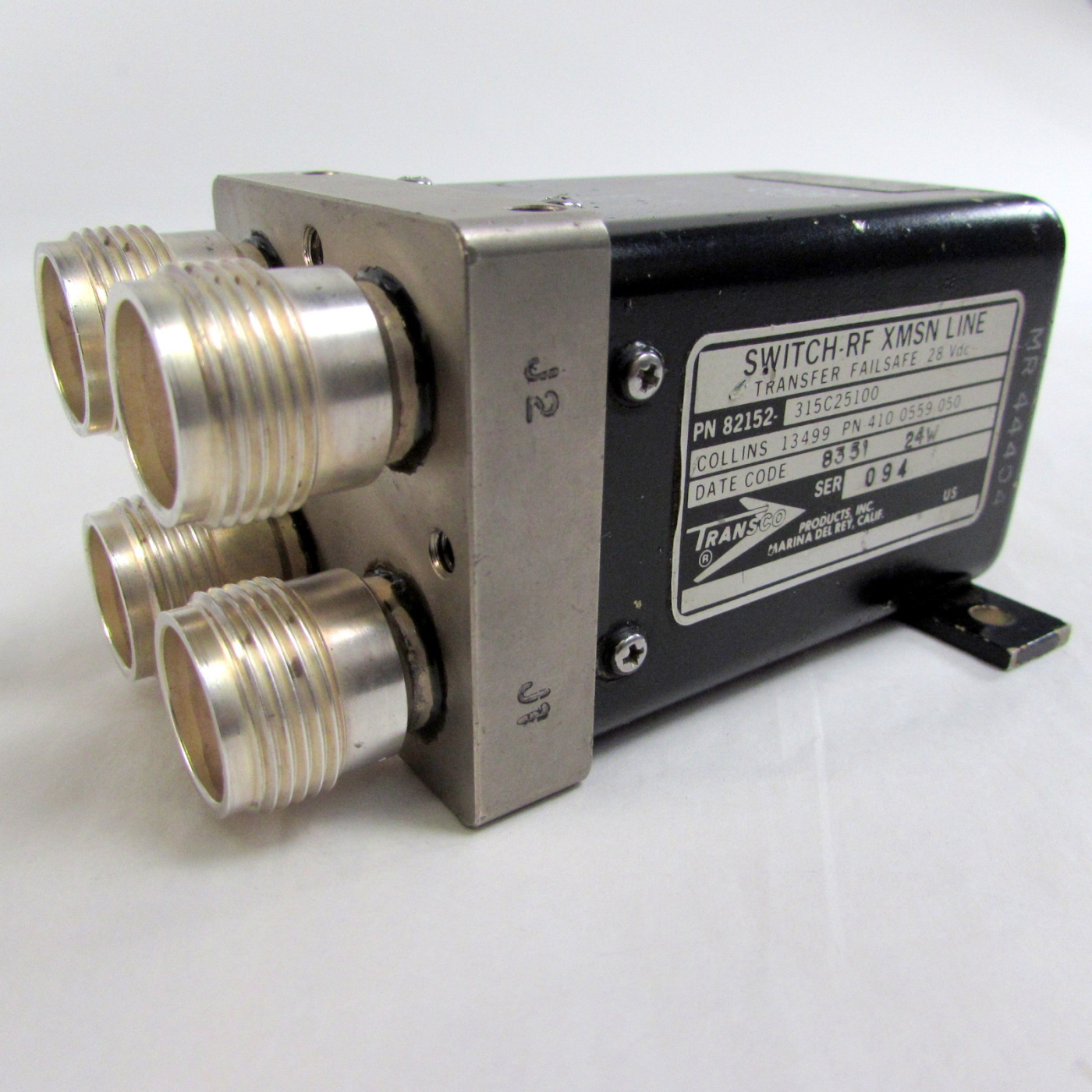

NEW Transco 82152-315C25100 XMSN Line RF Switch HN-Type(f) 26.5V 400MHz

This is a new 82152-315C25100 XMSN Line RF Switch manufactured by Transco. Manufacturer: Transco Part number: 82152-315C25100 Alt. P/N: 410-05
Qty. Available 1
Price: $3,499.99
Quantity:
Total:

Details

This is a new 82152-315C25100 XMSN Line RF Switch manufactured by Transco.
  • Manufacturer: Transco
  • Part number: 82152-315C25100
  • Alt. P/N: 410-0559-050
  • NSN: 5985-01-062-3036
  • Terminal type & qty: (4) HN-type (female)
  • Frequency rating: 225.0 MHz min and 400 MHz max
  • Actuator current type & rating in amps: 0.5 DC min and 1.5 DC max
  • Actuator voltage in volts: 26.5 nominal
  • Switch operation sequence: breaks before makes
  • Insertion loss in decibels: 0.10 single



Technical Characteristics Information

MRC Requirement Statement Reply Statement
AAQL BODY STYLE 27B RECTANGULAR
ABHP OVERALL LENGTH 109.2 MILLIMETERS NOMINAL
ABKW OVERALL HEIGHT 69.8 MILLIMETERS NOMINAL
ABMK OVERALL WIDTH 50.9 MILLIMETERS NOMINAL
ACZB FREQUENCY RATING 225.0 MEGAHERTZ MINIMUM SINGLE FREQUENCY OPERATING AND 400.0 MEGAHERTZ MAXIMUM
AEBV UNTHREADED MOUNTING HOLE DIAMETER 4.5 MILLIMETERS NOMINAL
AEEA SWITCH TYPE TRANSFER
AFDS LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS 5.71 MILLIMETERS NOMINAL SINGLE MOUNTING FACILITY PATTERN
AFDT SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS 39.7 MILLIMETERS NOMINAL SINGLE MOUNTING FACILITY PATTERN
AFDV LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS 60.2 MILLIMETERS NOMINAL SINGLE MOUNTING FACILITY PATTERN
AHTX INSERTION LOSS IN DECIBELS 0.10 SINGLE
AHUC COAXIAL CONNECTOR SERIES DESIGNATION HN
AHUD CONNECTOR END DESIGN FEMALE
AKNV MINIMUM CROSSTALK RATING IN DECIBELS 50.0 SINGLE
AKPC ACTUATOR OPERATING METHOD RELAY
AKPE ACTUATOR CURRENT TYPE AND RATING IN AMPS 0.5 DC MINIMUM AND 1.5 DC MAXIMUM
AKPJ ACTUATOR VOLTAGE IN VOLTS 26.5 NOMINAL
AKPN SWITCH OPERATION SEQUENCE BREAKS BEFORE MAKES
AKRC COUPLING POSITION QUANTITY 2
AXHR MOUNTING FACILITY TYPE AND QUANTITY 4 UNTHREADED HOLE
CBBL FEATURES PROVIDED RADIATION HARDENED AND RFI SHIELDING
CQYJ MOUNTING FACILITY PATTERN FOUR POSITION TRAPEZOID SINGLE MOUNTING FACILITY PATTERN
CRTL CRITICALITY CODE JUSTIFICATION CBBL
MATT MATERIAL ALUMINUM ALLOY BODY
NHCF NUCLEAR HARDNESS CRITICAL FEATURE HARDENED
TTQY TERMINAL TYPE AND QUANTITY 4 RECEPTACLE, COAXIAL AND 1 CONNECTOR, RECEPTACLE
ZZZK SPECIFICATION/STANDARD DATA 81349-MIL-S-3928 GOVERNMENT SPECIFICATION










Location: TN 49 G3, 1; EB; Q(82152-315C25100)
