A Pair of Polk Audio MW5532 5.25" Woofer 4 Ω Ohm New Unused

A Pair of Major Brand MW5532 5.25" Woofer 4 Ω Ohm New Unused
Qty. Available 98
Price: $45.00
Quantity:
Total:

Details

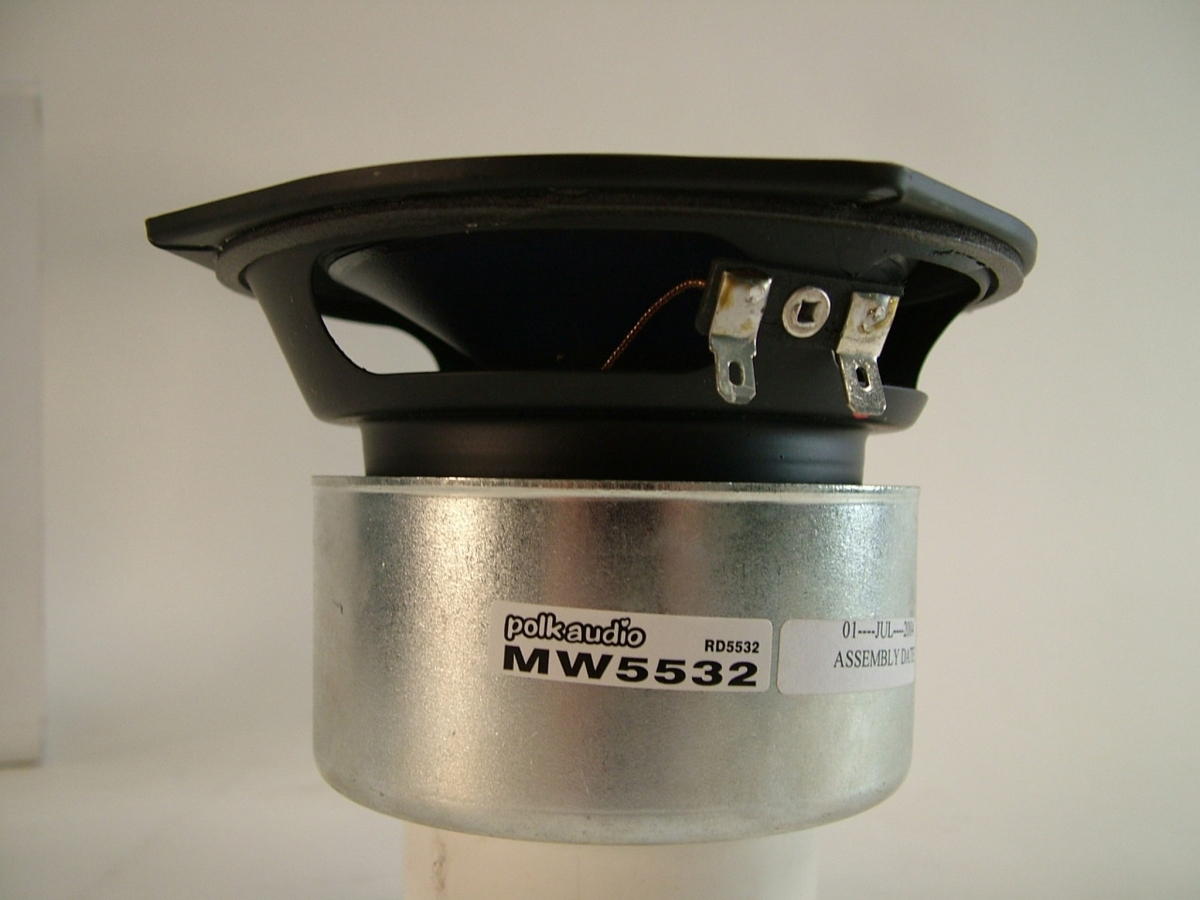

Polk Audio MW5532 Blue Polymer Cone
5.25" Woofer 4 ohm Impedance
( Model RD5532 )

Features

Polymer Cone - 110 watts RMS - 91 db
45 Hz. to 10 kHz.- 1" voice coil
Sold in pairs for one low price. 1 = 1 pair






Smart Looking Polk Audio 5.25" Woofer - Top Quality and Performance. This is a shielded driver that will work in many of the dual 5.25" Polk designs, both Shielded and Unshielded. Other than cone color all of the 5.25" drivers are very generic to each other and interchangeable.

Sold as a pair for one price, the Polk MW5532 is a supler 5 1/4" high performance woofer that was used in some of the later model series of Polk Audio Speaker.
It features an poly cone and rubber surround. With Power handling ability of 110 watts RMS, the MW5532 has an output performance of 91 db 1w/1m SPL, with a frequency range from 45 Hz. to 10 kHz. put it together, and you have a very nice performing woofer.

Polk Audio's MW5532 fits into a 4.875" mounting hole.
It has a mounting depth of 3.375"
The mounting face is 5.250" in dia. with four .140" mounting screws.
Mounting screws are spaced at 3.875" on center to center ( 4 holes at 90" spacing ), or 5.5" on the diagonal.




Remember, "SOUND WITHOUT QUALITY IS JUST NOISE"



Specifications

  • Size / Type = 5.250" Dynamic Balance® polymer cone woofer
  • SPL = 91 db @ 1w/1m
  • Wattage = 110 Watts RMS / 220 Watts Peak
  • Polymer cone woofer, rubber surround
  • Response = 45 Hz. to 10 kHz.
  • Weight = Right a 3 pound ea.
  • Magnet = Shielded 16 oz.
  • VC = 1" ( 25 mm)
  • Ohms = 4 ohms TS Measurements
    • f(s) - 69 Hz.
    • Q(ms) - 9.521
    • V(as) - 7.56 liters ( 0.267 cf. )
    • n(0) - 0.37%
    • M(ms) - 10.11 grams
    • R(e) - 3.69 Ohms
    • Q(es) - 0.666
    • SPL - 91 dB @ 1W/1m
    • C(ms) - 0.51 mm/N
    • Z(max) - 56.44 Ohms
    • Q(ts) - 0.622
    • L(e) - 0.36 mH
    • BL - 4.96
