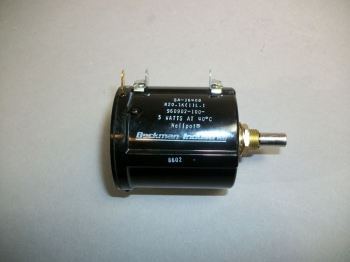

Beckman Industrial SA-1640B 5W Helipot Potentiometer Variable Resistor - New

NSN 5905-00-665-8472 P/N: SA-1640B Characteristic Details Section Quantity 1  Body Style Cylindrical bushing mounted  Reliability Ind
Qty. Available 14
Price: $95.88
Quantity:
Total:

Details

NSN 5905-00-665-8472
P/N: SA-1640B

Characteristic Details
Section Quantity 1
Body Style Cylindrical bushing mounted
Reliability Indicator Not established
Overall Length 3.045 inches nominal
Body Diameter 2.030 inches maximum
Shaft Diameter 0.249 inches nominal
Shaft Length 0.250 inches nominal
Mounting Bushing Length 0.190 inches nominal
Body Length 2.170 inches nominal
Overall Diameter 3.045 inches nominal
Shaft Style Round
Actuator Type Single shaft
Effective Electrical Rotation in
Angular Rotation 3600.0 nominal
Maximum Starting Torque 3.00 inch-ounces
Maximum Running Torque 3.00 inch-ounces
Nonturn Device Location At 6 oclock
Nonturn Device Radius 0.560 inches nominal
Shaft End Play 0.01500 inches
Shaft Runout 0.002 inches
Shaft Radial Play 0.004 inches
Screw Thread Diameter 0.375 inches nominal
Screw Thread Series Designator UNEF
Screw Thread Quantity per Inch 32.0
Terminal Location Longitudinally positioned on the circumference
Mounting Method Standard bushing
Features Provided Nonmetallic shaft
Electrical Resistance per Section 20.000 kilohms single section
Rotary Actuator Travel in Angular DEG 3600.0 nominal
Function Conformity Tolerance per Section -0.10/+0.10 single section
Temp Coefficient of Resistance per Section in PPM per DEG Celsius -130.0/+130.0 single section
Power Dissipation Rating per Section in Watts 5.0 free air single section
Function Conformity per Section Single section independent linearity
Resistance Tolerance per Section in Percent -1.0/+1.0 single section
Actuator Travel Control Feature Stops
Function Characteristic per Section Single section linear
Ambient Temp in DEG Celsius per Section at Full Rated Power 40.0 single section
Terminal Type and Quantity 3 tab, solder lug

















Shipped from TN Listed for by KK - Located at: P1102 on E Q - (SA-1640B) BD
