Remote Bi-Directional Proxim YDI Power Amplifier AMP2440

Young Design Remote Bi-Directional Power Amplifier
Model AMP2440


Weatherproof bi-directional pole mounted amplifier designed for extending the range of 2.4 GHz wireless modems, Wireless LAN cards, Access Points and wireless bridges. With input levels from 3mW to 100mW to gain 14dB transmitter power and 16 dB recieve gain.



• • Input levels from 3mW min. to 100mW max.
  • 14dB transmitter power gain (standard)
  • 16dB receive gain nominal
  • 650 mW (FHSS)  400 mW (DSSS) up to 1 watt Max.
  • LNA noise figure 3.8 dB Max
  • Heavy duty N-type conectors
  • Frequency range 2400 - 2483 mHz.



    PACKAGE INCLUDES:
  • Bi-directional Amplifier
  • DC Power Injector
  • 12 VDC, 100/220 VAC Power Supply
  • U-Bolts and mounting hardware
  • Installation and Operation Manual

Condition:

NEW IN FACTORY PACKAGING

30 Day Warranty

                                                                                   Loc = P 1031, On E

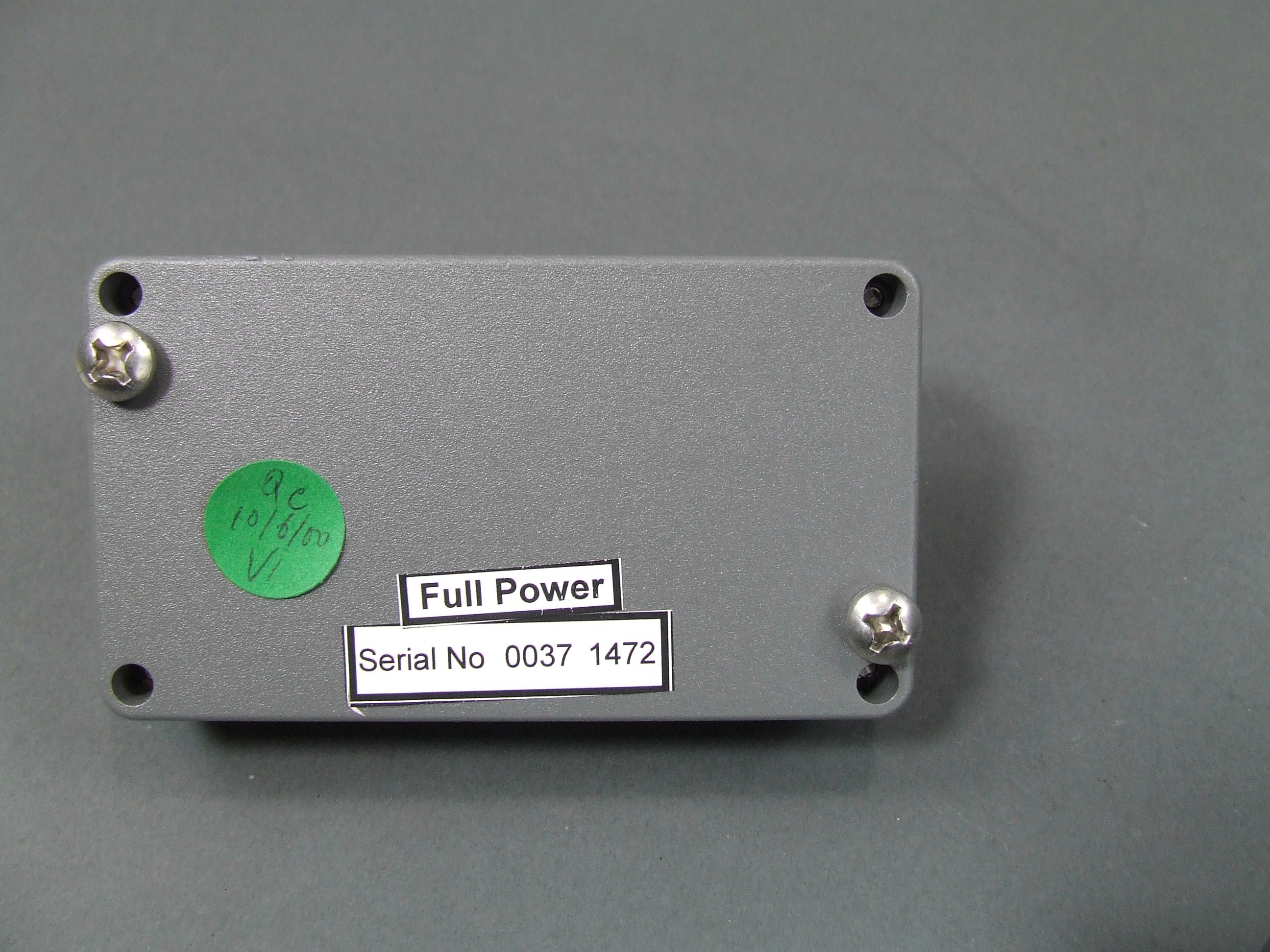

(Click on photos for larger view of the item)
