TL3001A-4 Professional Speaker 12 Inch 325 Watt RMS Woofer 4 Ohm With and SPL of 91 dB

Professional Speaker 12 Inch 325 Watt RMS Woofer 4 Ohm With and SPL of 91 dB
Qty. Available 98
Price: $65.00
Quantity:
Total:

Details

12 inch TL3001A-4 Woofer

Professional Speaker

12 Inch 325 Watt RMS Woofer
4 Ohm With and SPL of 91 dB



Our Mavin high performance 12" professional driver
Rated for 325 watts RMS, impedance is 4 ohms, cloth surround for long life and durability.
Heavy 9 pound magnet structure.
Red speckle seal around the front of the frame, makes it stand out and be noticed.

As does the sound, it is stroung and tight, great for a replacement, or for that special project.
Has a stiff paper cone for low distortion and high fidelity reproduction qualities.

Mavin's TL3001A series, is a top of the line professional speaker. Built with a mix of high durability, and great sound reproduction. It will last for many years, and could out last the cabinet you put it in.
This is a very heavy and efficient speaker, with a 2.5" voice coil it can handle up to 325 watts RMS and 500 watts peak. Pumping out good sounds is just what this speaker was designed for, with a SPL rating of 91 dB, and a range from 23 Hz. to 4000 Hz. You will find that the EM-TL3001A-4 is a great speaker as a replacement, or for any new project you have in the works.
Superior performance for PA systems, guitar amps, professional sound systems, or really durable old school home speaker systems.

Features:


  • Stiff pressed paper cone with cloth surround
  • 325 watts RMS power rating
  • 4 ohm impedance
  • A practical frequency range from 23 Hz. to 4000 Hz.
  • 2.5 inch ( 62.5 mm ) voice coil
  • Size 12 3/16" Dia. for a 11 3/16" mounting hole, and a 5 3/8" mounting depth. 8 mounting screws
Note that you can also get this speaker in an 8 Ohm Impedance



Thiele Small Specifications:
  • Revc = 3.600 ohms
  • Fo = 25 Hz.
  • Sd = 35.633 mM
  • Md = 50.000 g
  • Bl = 8.836T
  • Qms = 3.920
  • Qes = 0.659
  • Qts = 0.564
  • No = 0.525%
  • SPL = 90 dB
  • Vas = 47.533 mM
  • Cms = 263.634u M/N
  • Krm = 2.353 m Ohm
  • Erm = 0.895
  • Mms = 53.868 g
  • Mmd = 50.000 g
  • Kxm =18.739 mH
  • Exm = 0.746

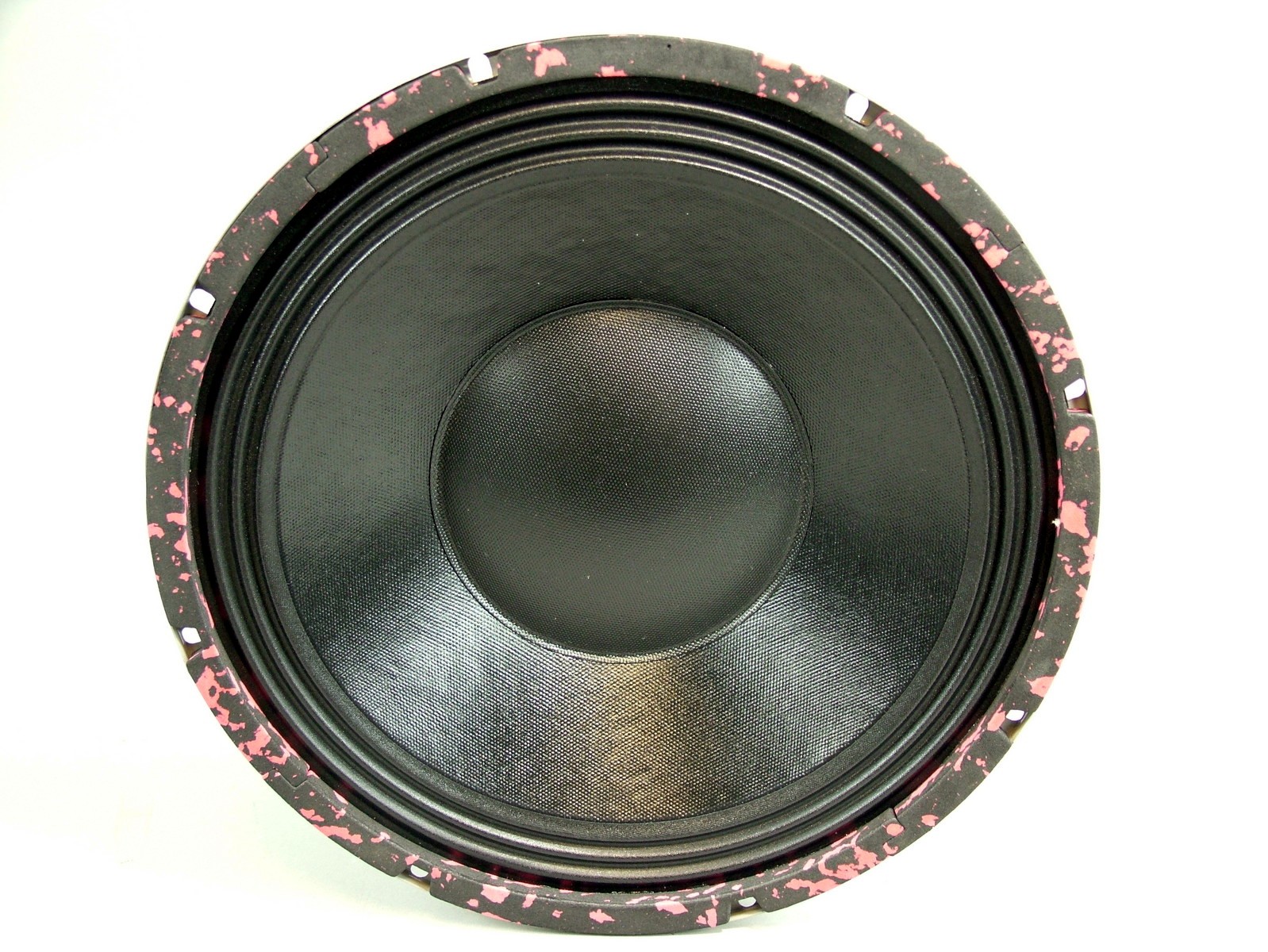

Below are pictures of the driver, click on an image to enlarge, for clearer detail.


Amazing Mavin TL3001A 12 Inch Woofer Amazing Mavin TL3001A 12 Inch Woofer  Amazing Mavin TL3001A 12 Inch Woofer
