Mavin EM-T-201 High Power 500 Watt RMS 2 Way Crossover 12 dB Slope

Our mavin High Power 2 way Crossovers. 12 dB Slope

Qty. Available 100

Price: $29.87

Quantity:

Total:

Details

Mavin EM-T-201 Two Way Crossover
High Power 500 Watts RMS
12 dB Slope Crossover Point at 3500Hz
Can be used with 6 ohm drivers too, see the crossover points for those impedances.
Our Mavin High Performance 2 Way Crossover Rated for 500 Watts RMS, with crossover point at 3500 Hz. at 8 ohms nominal.

Mavin's 12 dB 2 Way Crossover, 8 Ohm Nominal Impedance,

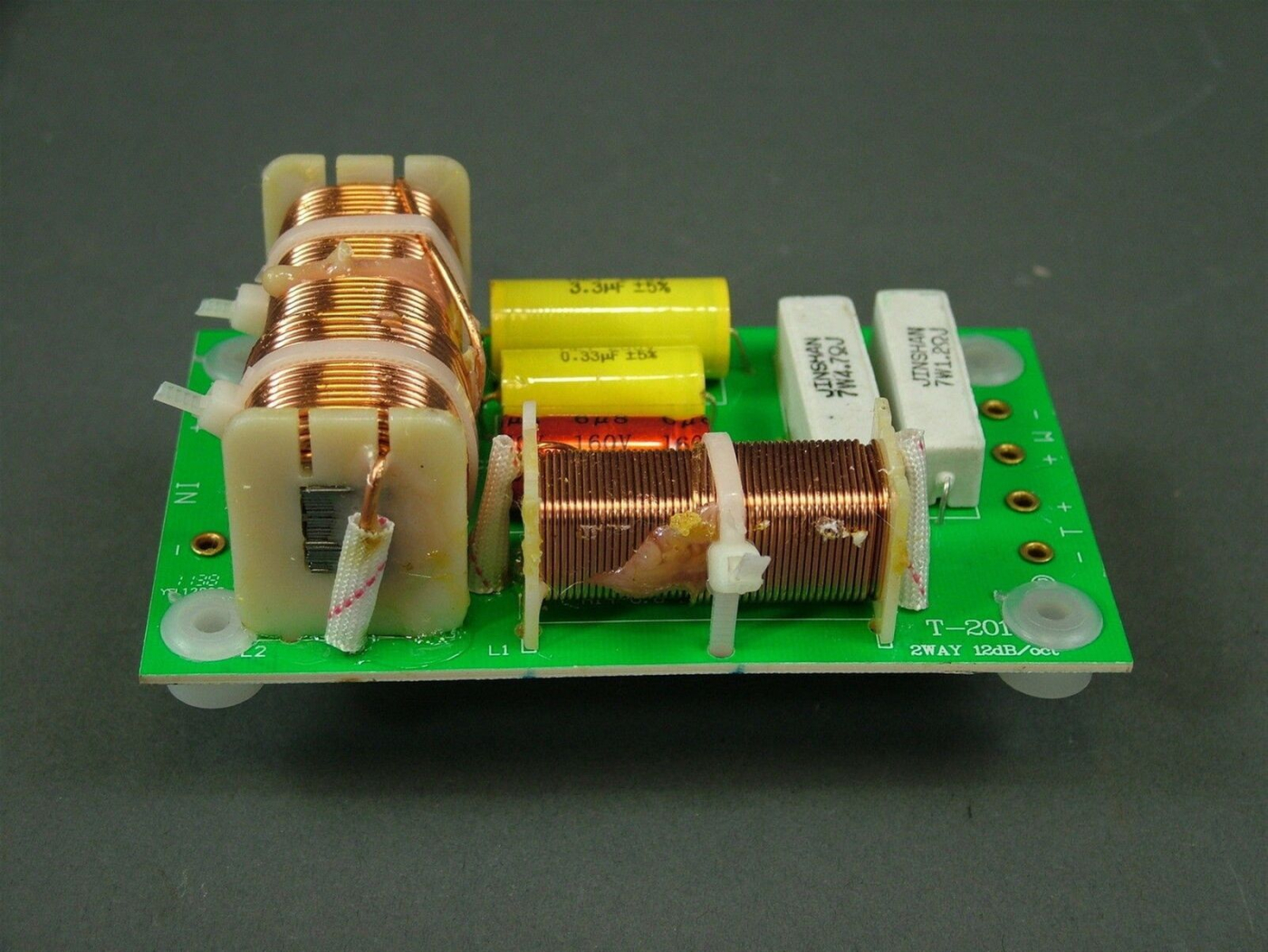

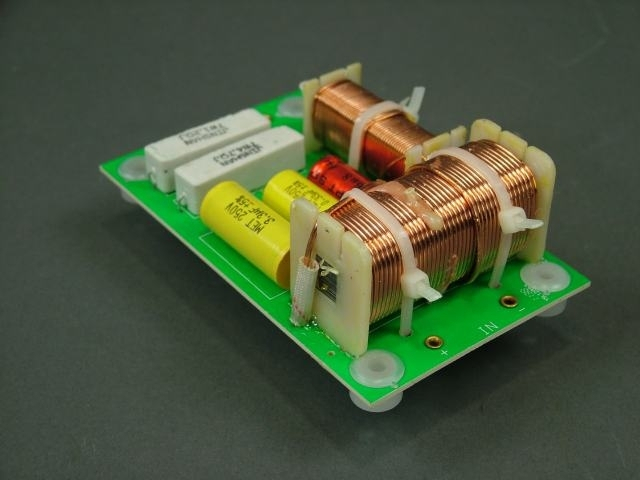

PC Board Design with Plastic Stand Offs,
note that some soldering required to attach the wires to the circuit board.
Price listed is for a Pair of crossovers

Features

PC Board Design
500 Watts RMS Power Rating
8 ohm impedance
Crossover point at 3400 Hz.
12 dB Octave Slope
Size L x W x H 115 x 70 x 37 mm or
4 5/8" x 2 3/4" x 1 1/2"
Suitable for a general 2 way design, look at your Speaker Frequency Response, will work with any speaker size.
Note that you can use this crossover in a 6 Ohm designs the crossover points move to 5100 Hz.
