8 ohms 8 inch 2 Way Speaker Kit pair 125 watts

8 ohms 8 inch 2 Way Speaker Kit pair 125 watts
Qty. Available 39
Price: $54.50
Quantity:
Total:

Details

8 Ohm 8 inch 2 Way Speaker Kit pair 125 watts

8" Woofer, 1" Dome Tweeter and 2 way crossover

Perfect for that beginner or starter project. It just requires a simple box, and you end up with that sounds great in the office, garage, bedroom, etc..

This is a basic 8" two way setup.
The kit contains all of the speaker components, needed to build a pair of 2 way speakers.

Two woofers, two tweeters and two crossovers, two terminal cups.
Impedance is 8 ohms, standard for a home system.



Great for the first speaker project, make a nice set of bedroom or dorm speakers.

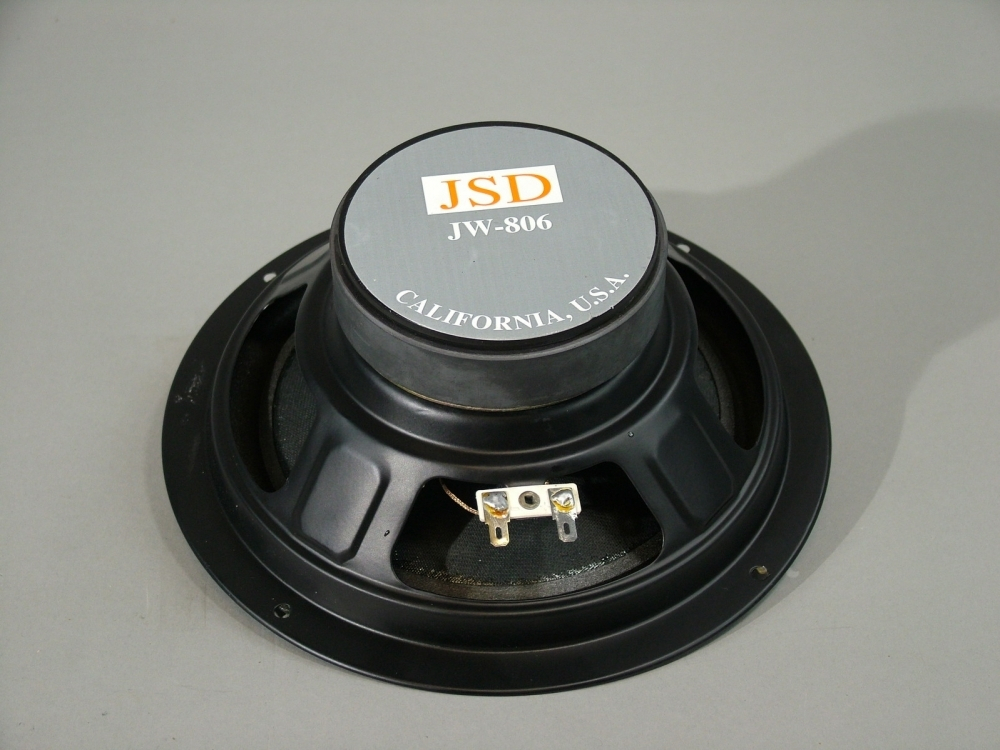

You get, two 8" JSD woofers, they will give you a nice range and bass response, down to below 40 Hz.

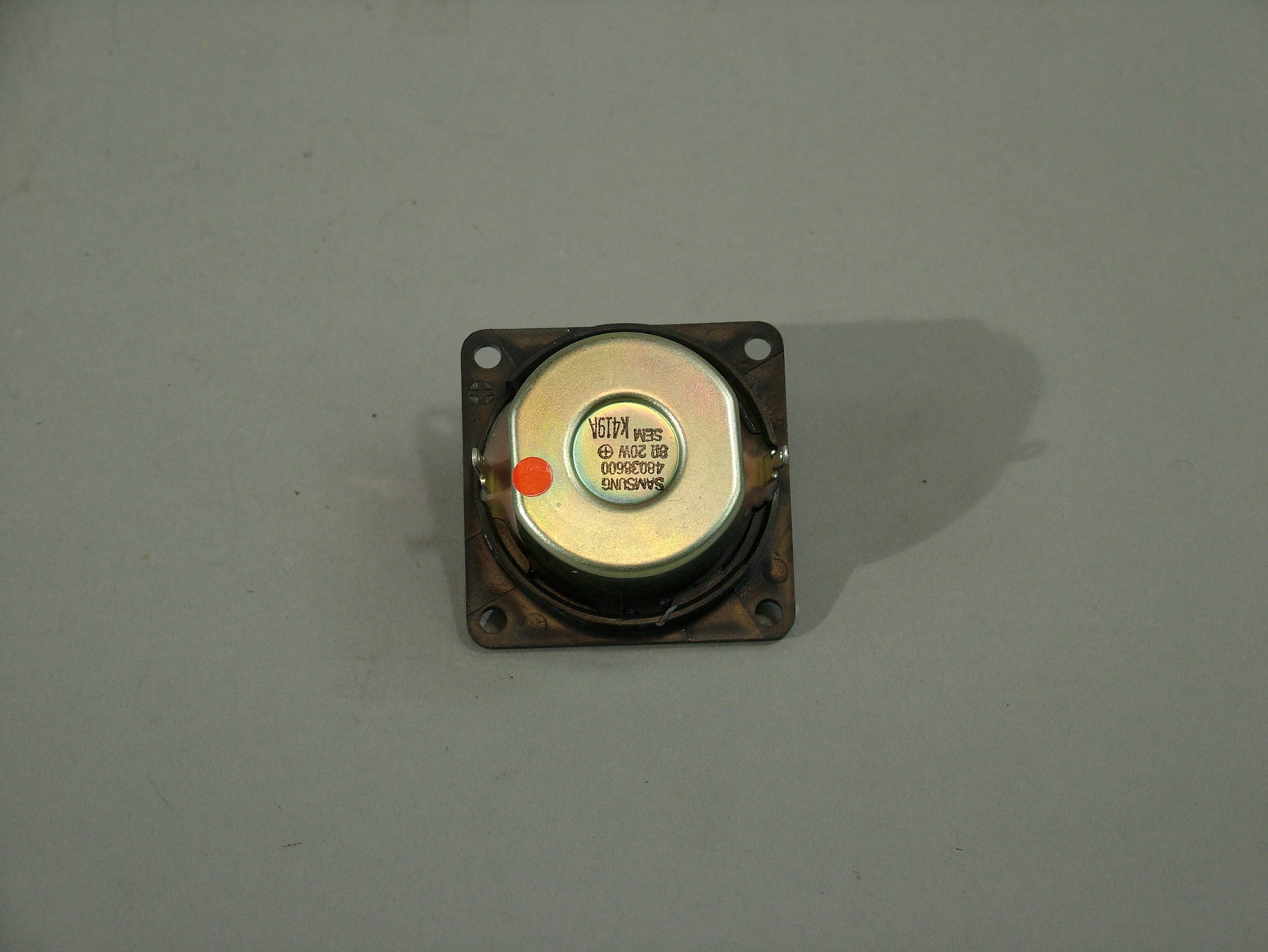

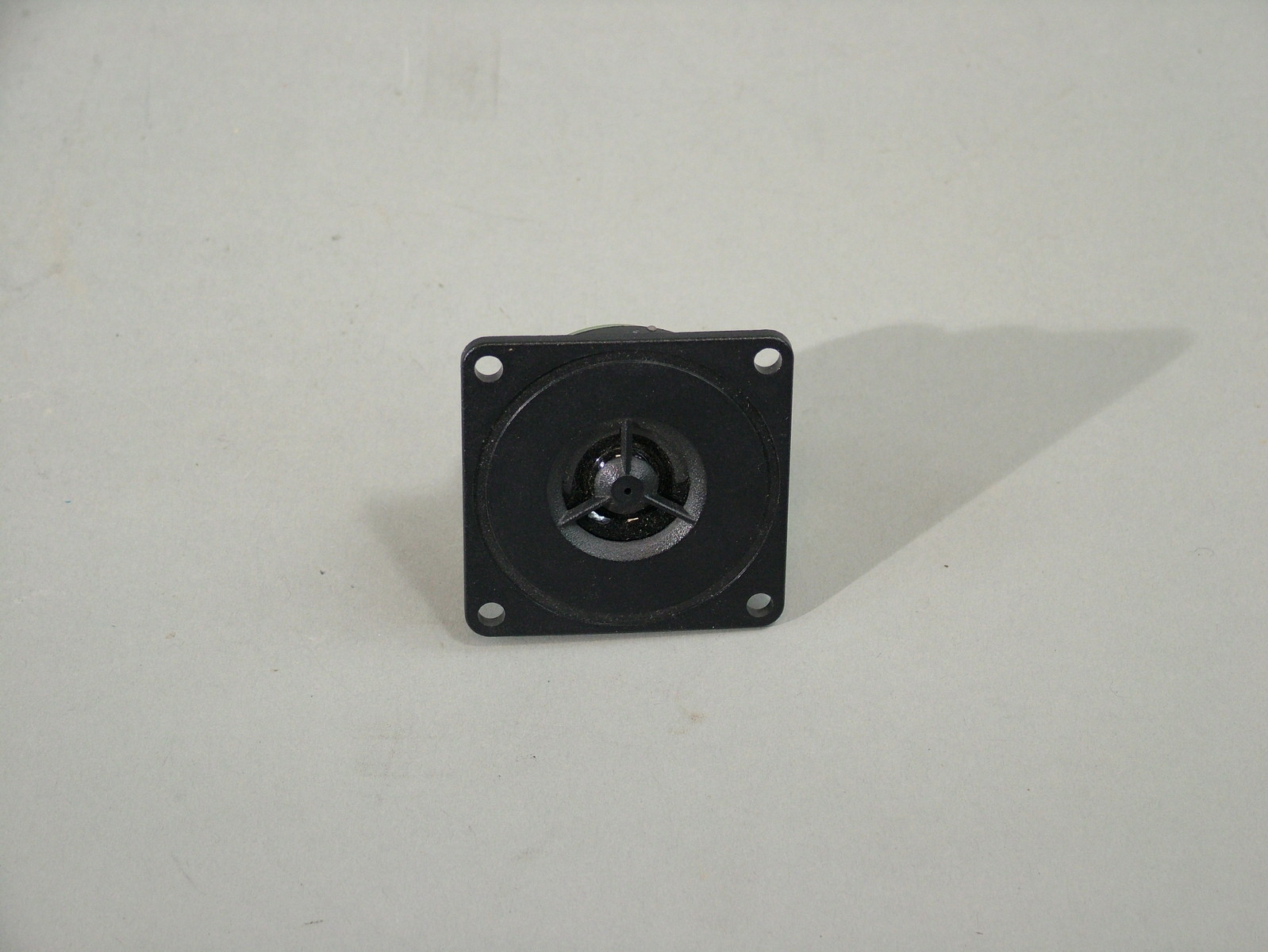

Two Samsung 1" dome tweeters, which will produce a clear and precise sound.

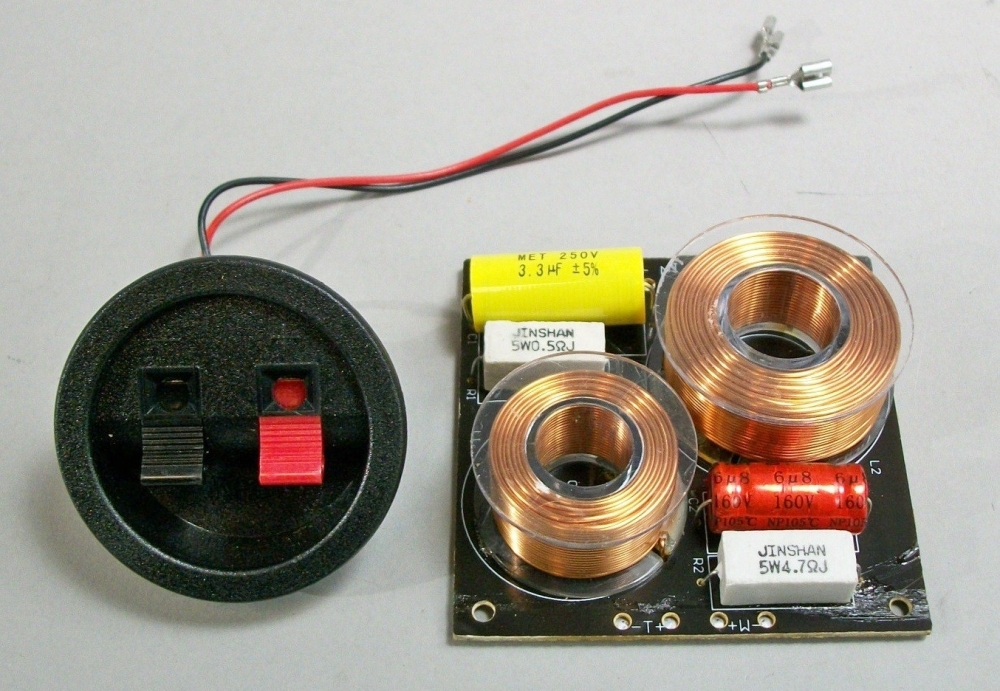

And a superior quality Mavin 12 dB 2 way crossover with binding posts.
Put them all together in a cabinet of your design for a clean sounding but easy to build kit.

Here is a link to the basic design plans, use as is, or change to fit your needs.

Click to download


Power handling would be right at 125 to 150 watts RMS, or 200 Watts peak, with a frequency range of 37 Hz. to 20 kHz. at 90 dB. +/- 5 dB, so a very clean system.
Again a great starter project or a stable 8" design that should last for years.


Specs:

  • Wattage - 125 watts RMS
  • Response - 36 Hz. to 20 kHz.
  • SPL - at least 90 dB @ 1 watt
  • Impedance - 8 ohm nominal
  • Crossover - 3400 Hz.
  • Wiring - soldering required to attach leads to the crossover network.

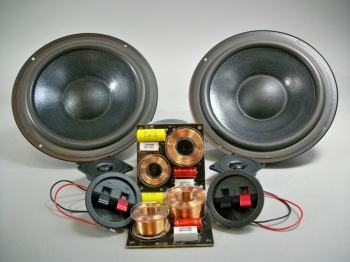

Below are pictures of the components. Click on a picture to enlarge for greater detail.

8 inch 8 Ohm 2 Way Kit 8 inch 8 Ohm 2 Way Kit 8 inch 8 Ohm 2 Way Kit
