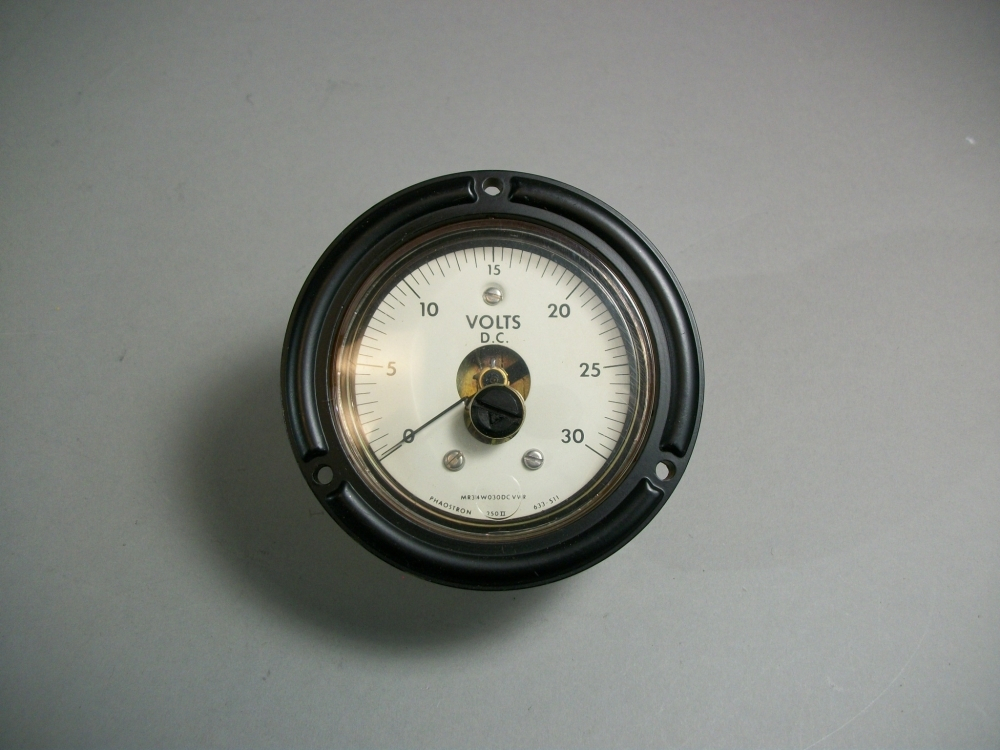

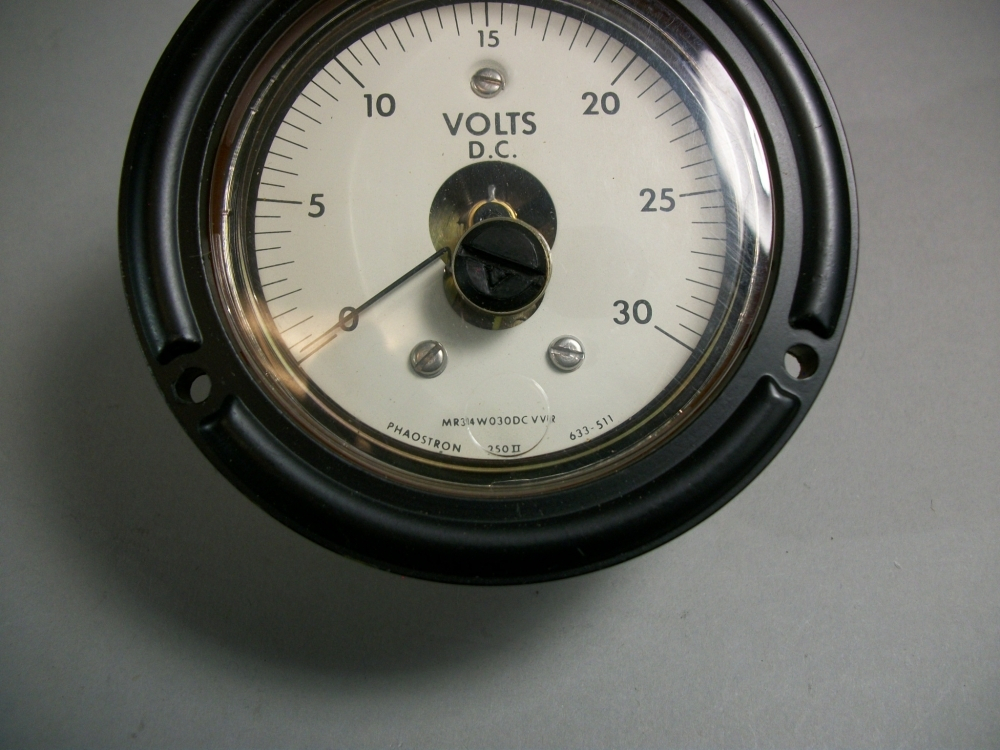

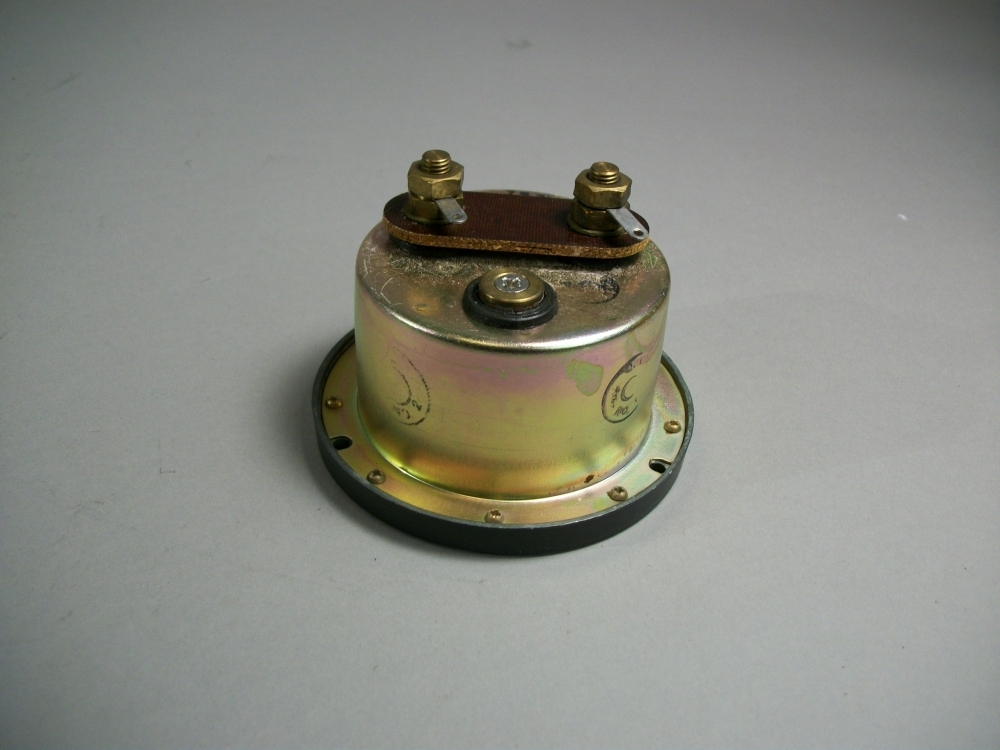

Phaostron MR34W030DCVVR Volt Meter - New

New P/N: MR34W030DCVVR NSN: 6625-00-193-7164  Comes with hardware shown in pictures Features Overall Length 2.850 inches maximum Mou
Qty. Available 2
Price: $45.88
Quantity:
Total:

Details

New
P/N: MR34W030DCVVR
NSN: 6625-00-193-7164

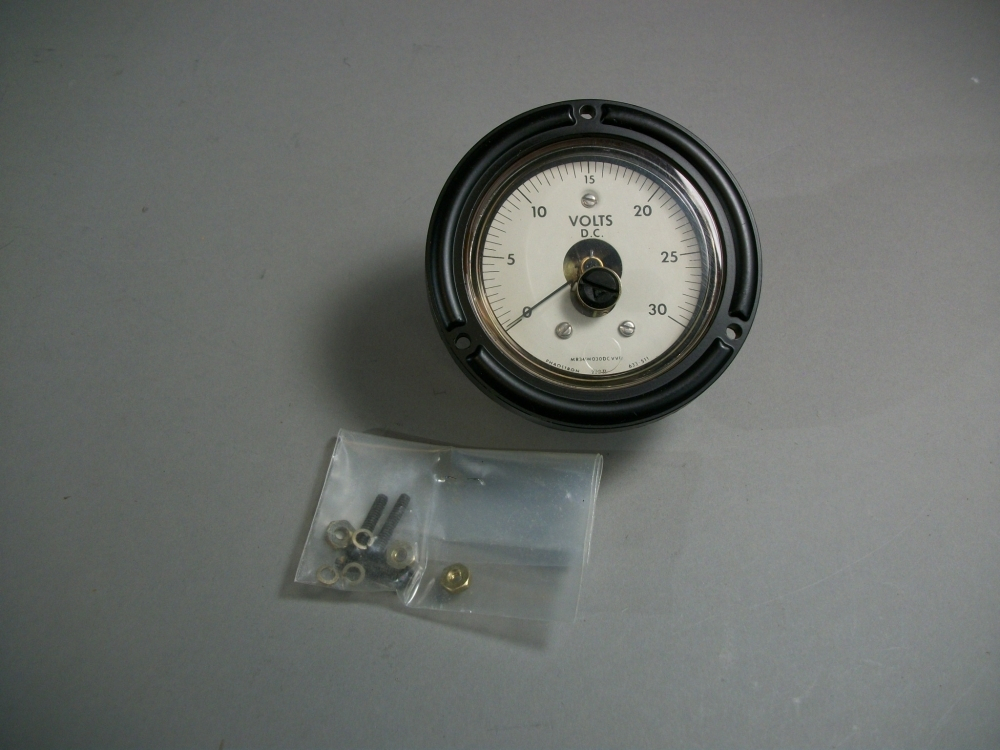

Comes with hardware shown in pictures
Features

Overall Length 2.850 inches maximum
Mounting Hole Diameter 0.150 inches nominal
Scale Division Quantity 30 single indicator single range
Overall Diameter 3.510 inches maximum
Environmental Protection Airtight and dust resistant and fungus resistant and heat resistant and humidity resistant and shock resistant and vibration resistant and water resistant
Mounting Bolt Circle Diameter 3.160 inches nominal
Furnished Items AND Quantity Nut 7; lockwasher 5; seal 1
Indicator Type Dial W/pointer
Installation Design Panel
Mounting Arrangement Style Three hole/stud bolt circle
Dial Scale Marking Color Black single indicator single range
Accuracy IN Percent -1.0/+1.0 at full scale single indicator single range
Unable TO Decode Unable to decode
Meter Depth Behind Mounting Flange 1.660 inches maximum
Meter Body Diameter Behind Mounting Flange 2.800 inches maximum
Movement Type Moving coil, permanent magnet
Background Color White single indicator single range
Pointer Color Black single indicator single range
Power Source External
Mounting Facility Type AND Quantity 3 screw and 3 unthreaded hole
Scale Graduation Type Linear single indicator single range
Measurement Range +0.0/+30.0 volts, dc single indicator single range

















Shipped from TN location on E (Q-MR34W030DCVVR) (kk)
