Audiophile Studio Reference Monitor 6.5" Kit Components Plans 8 ohm 125 Watts

 Clean 6.5" Woofer Based Studio or Reference Monitor Excellent Bass Response and a Smooth Even Tonal Range Low to High 12 dB 2 Way D
Qty. Available 70
Price: $74.99
Quantity:
Total:

Details

 Clean 6.5" Woofer Based Studio or Reference Monitor

Excellent Bass Response and a Smooth Even Tonal Range Low to High

12 dB 2 Way Design with Soft Dome Tweeter
Kitted Components Only, you will need to build the cabinets.

COMPONENTS ONLY, YOU WILL NEED TO BUILD YOUR CABINETS.
To view the basic plans, click on the last picture to the right to get an idea of the size and scope of the design.


We bought this fantastic 6.5" Woofer, it has the bass response of a much larger woofer, pushing a 10" or high end 8" woofer. No lie, no hype, this little 6.5" woofer Kicks Bass.
The goal in this design and component kit, was to put together a World Class Studio Reference Monitor. I think we nailed it.
The sound is warm and rich, with a bass response well beyond the 6 1/2" woofers size. If I had to use one word to describe this little speaker design, it would be AMAZING.
Anyone who has dealt with me before knows that I'm not prone to inflating a speakers performance to just make a sale.
Simple fact about me, and my companies outlook on these speaker designs. If they don't sound good, we don't sell them. I don't listen to crappy speakers, and neither should you.
Bang for buck you will not find a better speaker design in the world. In total, this little kit will cost you some where in the $120.00 range, including these components and the materials needed to build the cabinets.
Now this will vary depending on what you use for the cabinets and how they are finished. As you can see, they are not expensive, but they will sound like it.

That and your time, will net you a set of World Class Studio Reference Monitors. You can expect a rich clear range of sound from about 33Hz. to beyond 20kHz.
All this in a small book case size.
Perfect for the bed room, game room, movie room, den, family room, your video center and yes your recording studio. Small and fairly compact you will swear that you are listening to a speaker system twice this size. Close your eyes and just listen, better still enjoy the wonderful sound of these speakers.

What do you get?

You will receive two of each of the following components

    • 6.5" Woofer

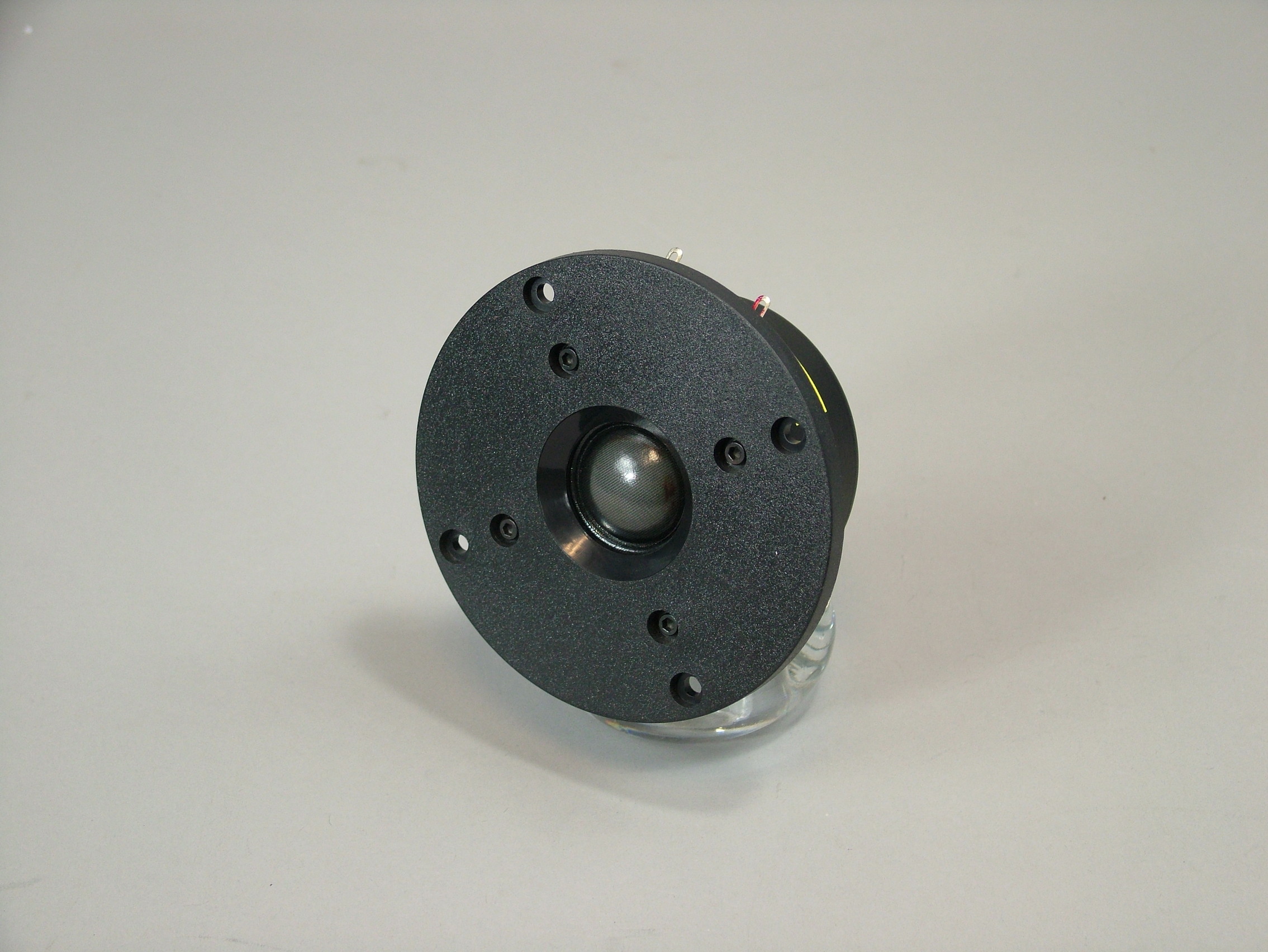

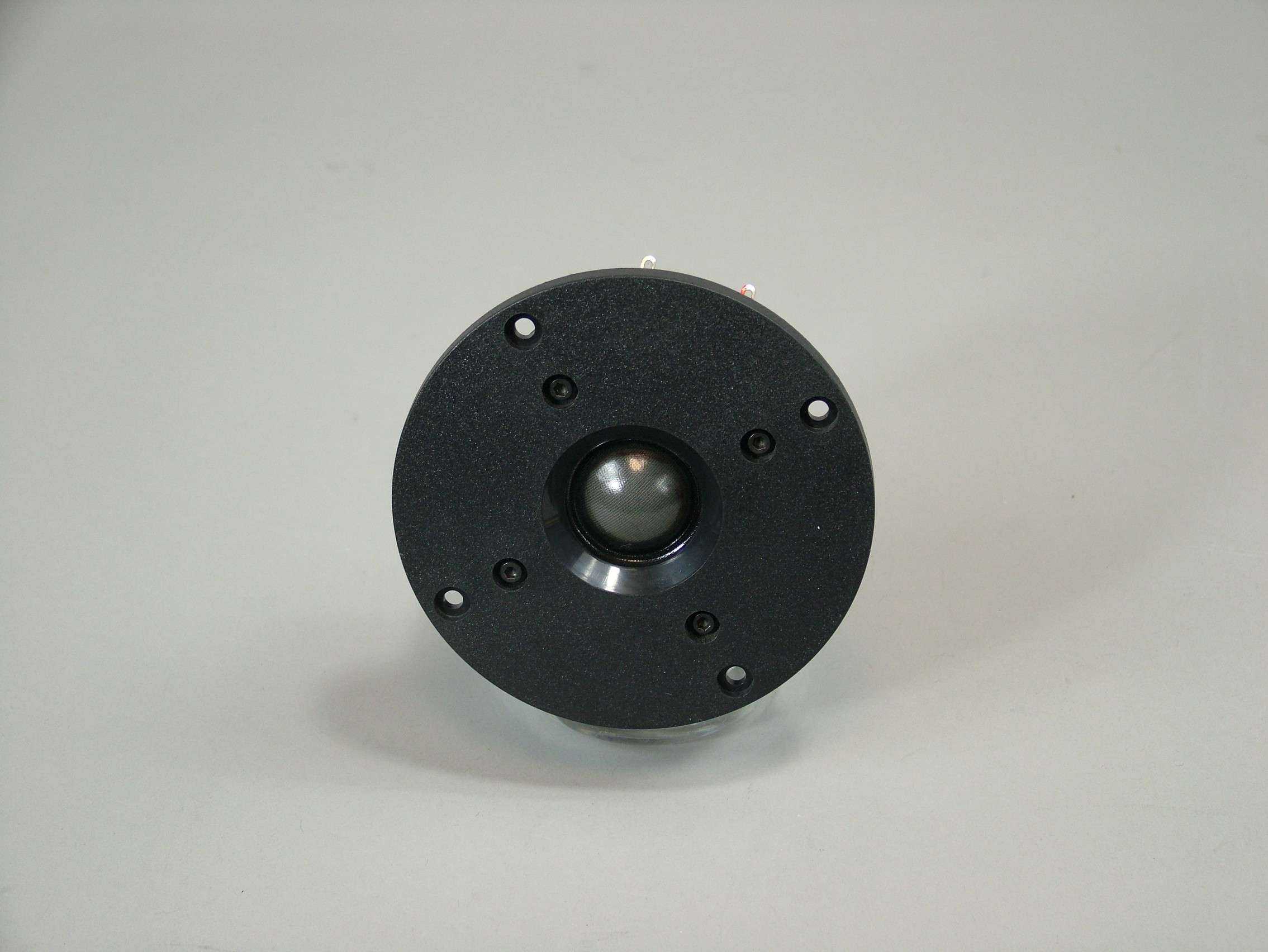

    • Mavin Soft Dome Tweeter

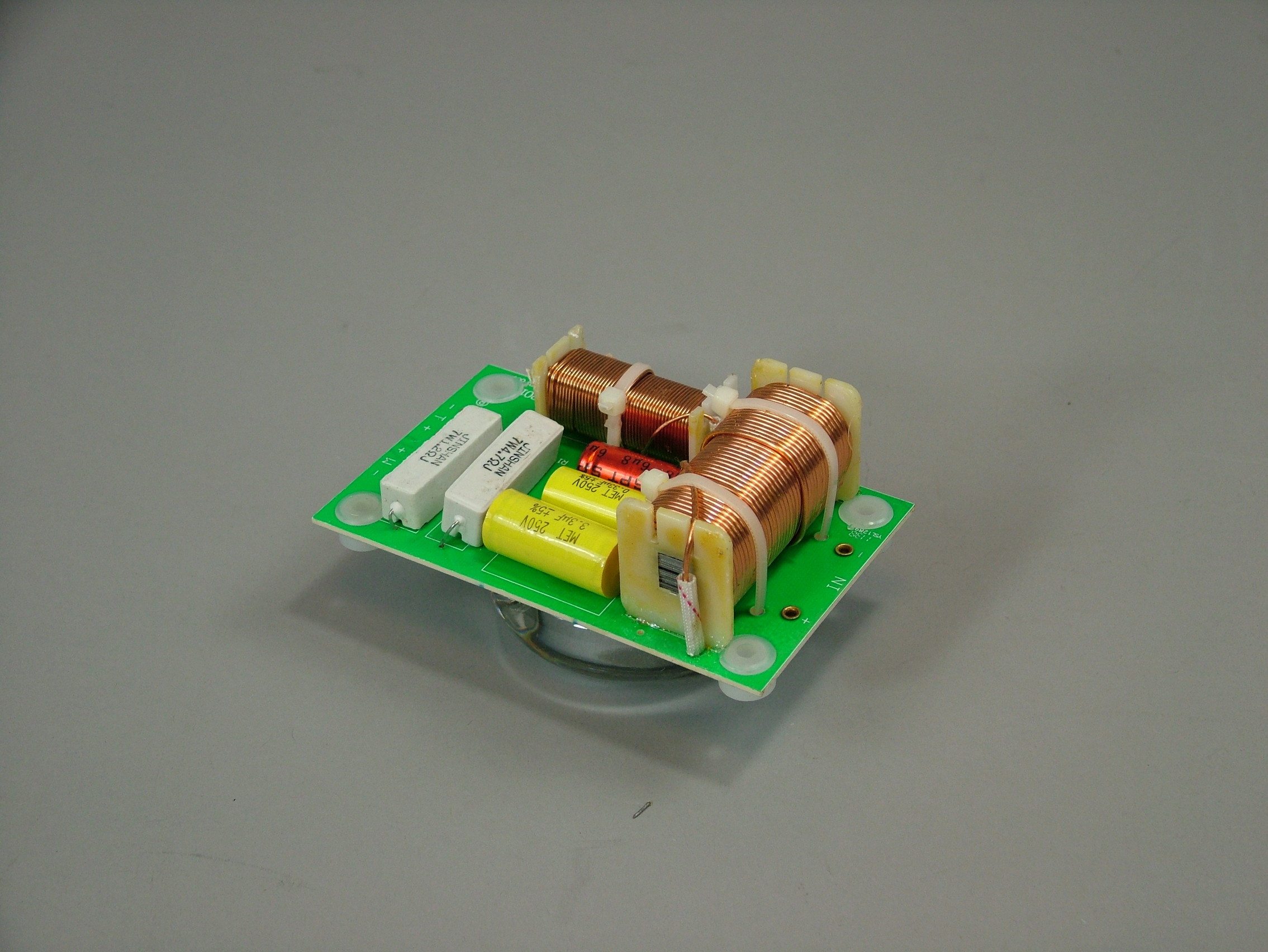

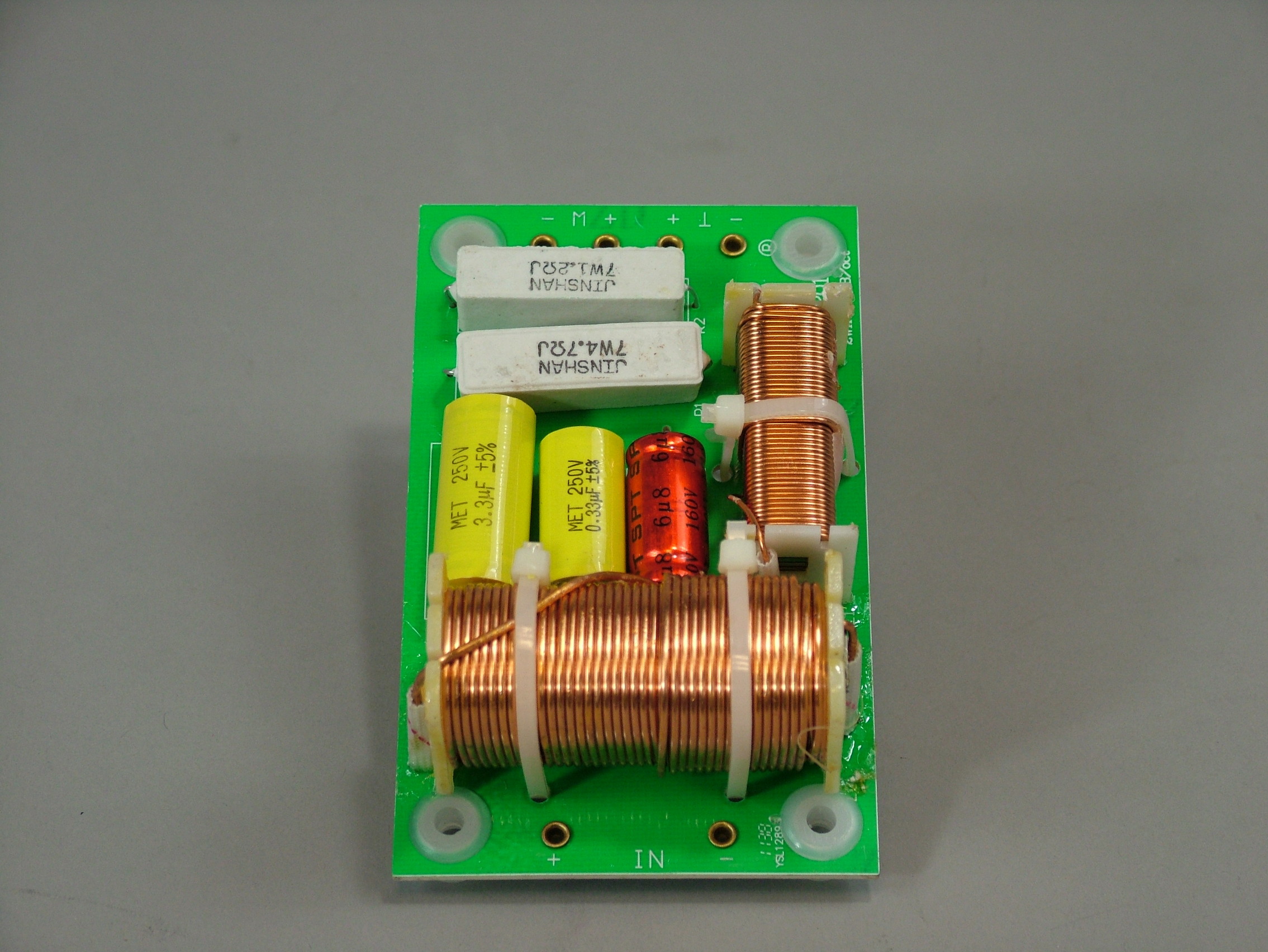

    • Mavin 12dB 2 way Crossover

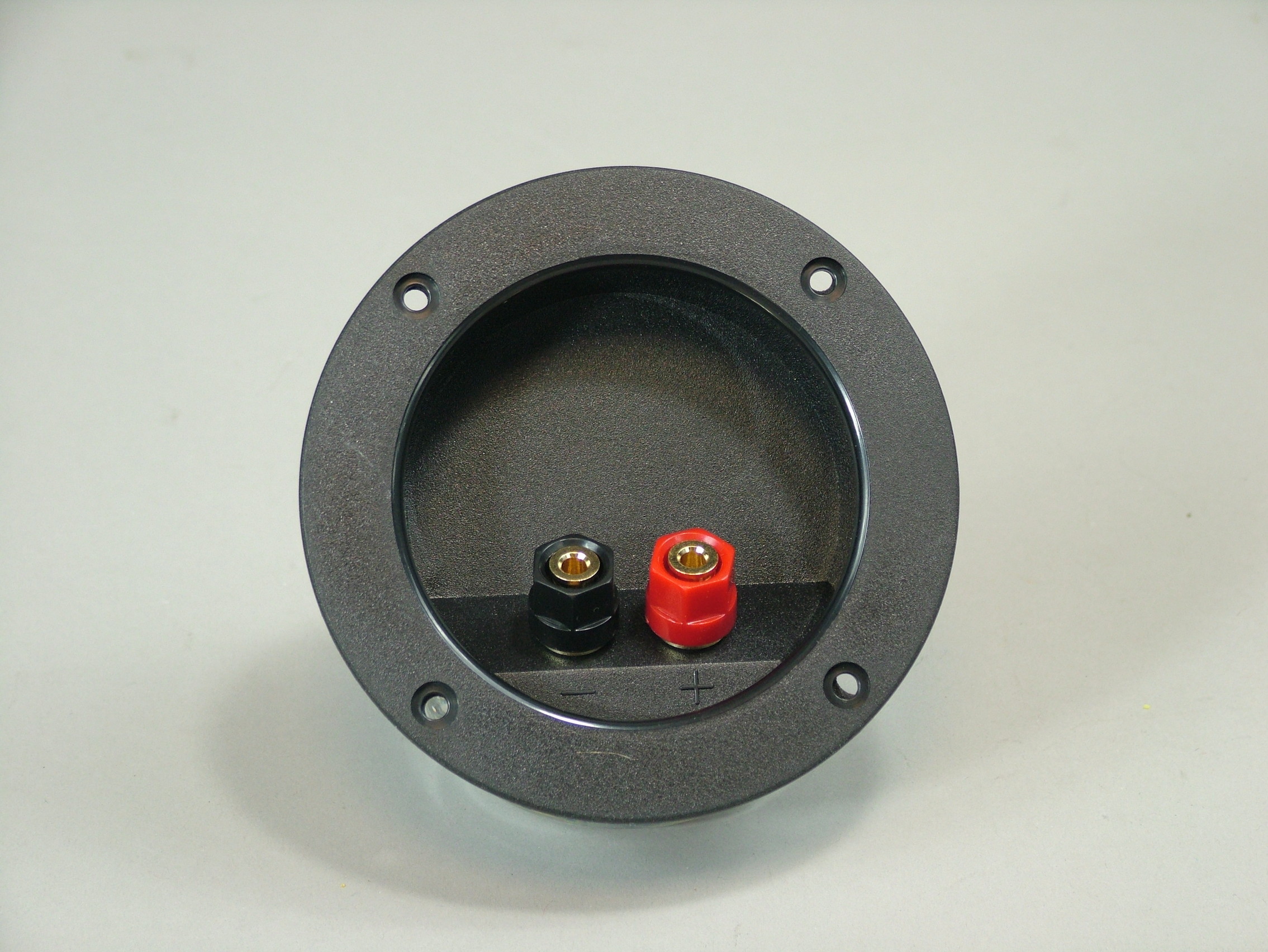

    • Mavin 5 way Gold Plated Binding post Terminal Cup




  • Woofer Specifications

    • 1" voice coil
    • Power handling 125 watts RMS
    • Rubber Surround
    • Extra Thick Paper Cone
    • Power Bass Dust Cap
    • Magnetically Shielded
    • 6 ohms Impedance ( Smooths and extends the mid crossover point )
    • Depth = 3.125" ( 3 1/8" ) (78 mm )
    • Frame Dia. = 6.5" ( 6 1/2" ) ( 165 mm )
    • Mounting Hole Opening Size 5.85" ( 5 9/16" ) ( 142 mm )
    • Weight = 3 pounds ( raw weight of the speaker, not packaged )
    • 30 oz. magnet structure
    • 4 mounting screws, spaced 6.190" a part on the diagonal center to center ( 6 3/16" ) ( 157 mm )
      The four mounting screw holes are 90 degrees to each other and spaced 4.435" a part on center. ( 4 7/16" ) ( 112 mm )

      T/S Specs
    • f(s) = 36.78 Hz.
    • Q(ms) = 6.781
    • V(as) = 23.68 liters ( 0.836 cf. )
    • n(0) = 0.28%
    • M(ms) = 35.20 grams
    • R(e) = 3.09 ohms
    • Q(es) = 0.436
    • SPL = 91 dB @ 1W/1m
    • C(ms) = 0.51 mm/N
    • Z(max) = 51.19 ohms
    • Q(ts) = 0.409
    • L(e) = 0.53 mH
    • BL = 7.69
    • Tweeter and Crossover Specifications

      • Tweeter is a Soft Fabric Dome Design
      • 90 Watts RMS Power Rating
      • 8 ohm impedance
      • A Practical Frequency Range from 1500 Hz. to 21000 Hz.
      • 1 inch Fabric dome ( 50 mm ) and Voice Coil
      • Size 4" Dia. for a 2 3/4" eye browed mounting hole, and a 1 3/4" mounting depth. 4 mounting screw holes

      • Crossover is PC Board Design ( Soldering is required )
      • 500 Watts RMS Power Rating
      • 8 ohm impedance
      • Crossover point at 3400 Hz.
      • 12 dB Octave Slope
      • Size L x W x H 115 x 70 x 37 mm
        or
        4 5/8" x 2 3/4" x 1 1/2"



      Shipping weight is 14 pounds
