Polk Audio MW5530 Woofers 5 1/4" - 4 ohms - New - Pair

Polk Audio MW5530 Woofers 5 1/4" - 4 ohms - New - Pair
Qty. Available 66
Price: $44.99
Quantity:
Total:

Details

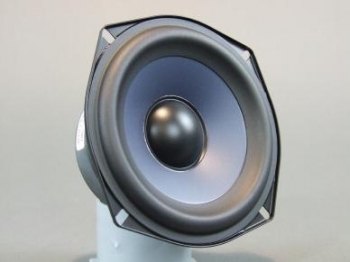

Polk Audio MW5530 Blue Polymer Cone 5.25" Woofer
4 ohm Impedance
Features - Polymer Cone - 110 watts RMS - 91 db
45 Hz. to 10 kHz.- 1" voice coil
Sold in pairs for one low price. 1 = 1 pair
Shipping from 37370



D E S C R I P T I O N



Smart Looking Polk Audio 5.25" Woofer - Top Quality and Performance.

Sold as a pair for one price, the Polk MW5530 is a supler 5 1/4" high performance woofer that was used in some of the later model series of Polk Audio Speaker.
It features an poly cone and rubber surround. With Power handling ability of 110 watts RMS, the MW5530 has an output performance of 91 db 1w/1m SPL, with a frequency range from 45 Hz. to 10 kHz. put it together, and you have a very nice performing woofer.

Polk Audio's MW5530 fits into a 4.875" mounting hole.
It has a mounting depth of 3.375"
The mounting face is 5.250" in dia. with four .140" mounting screws.
Mounting screws are spaced at 3.875" on center to center ( 4 holes at 90" spacing ), or 5.5" on the diagonal.



Remember, "SOUND WITHOUT QUALITY IS JUST NOISE"




Specifications

  • Size / Type = 5.250" Dynamic Balance® polymer cone woofer
  • SPL = 91 db @ 1w/1m
  • Wattage = 110 Watts RMS / 220 Watts Peak
  • Polymer cone woofer, rubber surround
  • Response = 45 Hz. to 10 kHz.
  • Weight = Right a 3 pound ea.
  • Magnet = Un-Shielded 16 oz.
  • VC = 1" ( 25 mm)
  • Ohms = 4 ohms

TS Measurements
  • f(s) - 69 Hz.
  • Q(ms) - 9.521
  • V(as) - 7.56 liters ( 0.267 cf. )
  • n(0) - 0.37%
  • M(ms) - 10.11 grams
  • R(e) - 3.69 Ohms
  • Q(es) - 0.666
  • SPL - 91 dB @ 1W/1m
  • C(ms) - 0.51 mm/N
  • Z(max) - 56.44 Ohms
  • Q(ts) - 0.622
  • L(e) - 0.36 mH
  • BL - 4.96
